Size (H x W x D): 55 mm x 39 mm x 207 mm (2 3/16 in x 1 1/2 in x 8 1/8 in) b
Weight: 0.3 kg (0.7 lb)
Resolution: 0.55 µm
Camera sensor: Five-megapixel CMOS
Visual detection capability: <1 µm
Field of view
304 µm x 304 µm (high magnification)
608 µm x 608 µm (mid magnification)
912 µm x 912 µm (low magnification)
Light source: Blue LED
Lighting technique: Coaxial
Capture button: Available on all models
Magnification button: Available on all models
Digital magnification: Three levels
Connector: Micro USB
Connectivity: WiFi 802.11g
Frequency band: 2.4 GHz
Smart device OS compatibility: Android 4.2 and above, iOS 8.1 and above
Power: 1 x removable battery
Autonomy: 8 hours
Recharge time: ≤4 h
Distance range: 2.5 m (8.2 ft)
GENERAL SPECIFICATIONS
Temperature operating:
Unit powered by batteries: –10 °C to °C 40 °C (14 °F to 104 °F)
Unit connected to USB adapter: 0 °C to 40 °C (32 °F to 104 °F)
Temperature storage:
Unit without batteries: –40 °C to 70 °C (–40 °F to 158 °F)
Unit with batteries: –20 °C to 60 °C (–4 °F to 140 °F)
Relative humidity:
Unit: 0% to 95% non-condensing
USB Adapter: 5% to 95% non-condensing for storage. 8% to 90% for operating temperature
ACCESSORIES (INCLUDED)

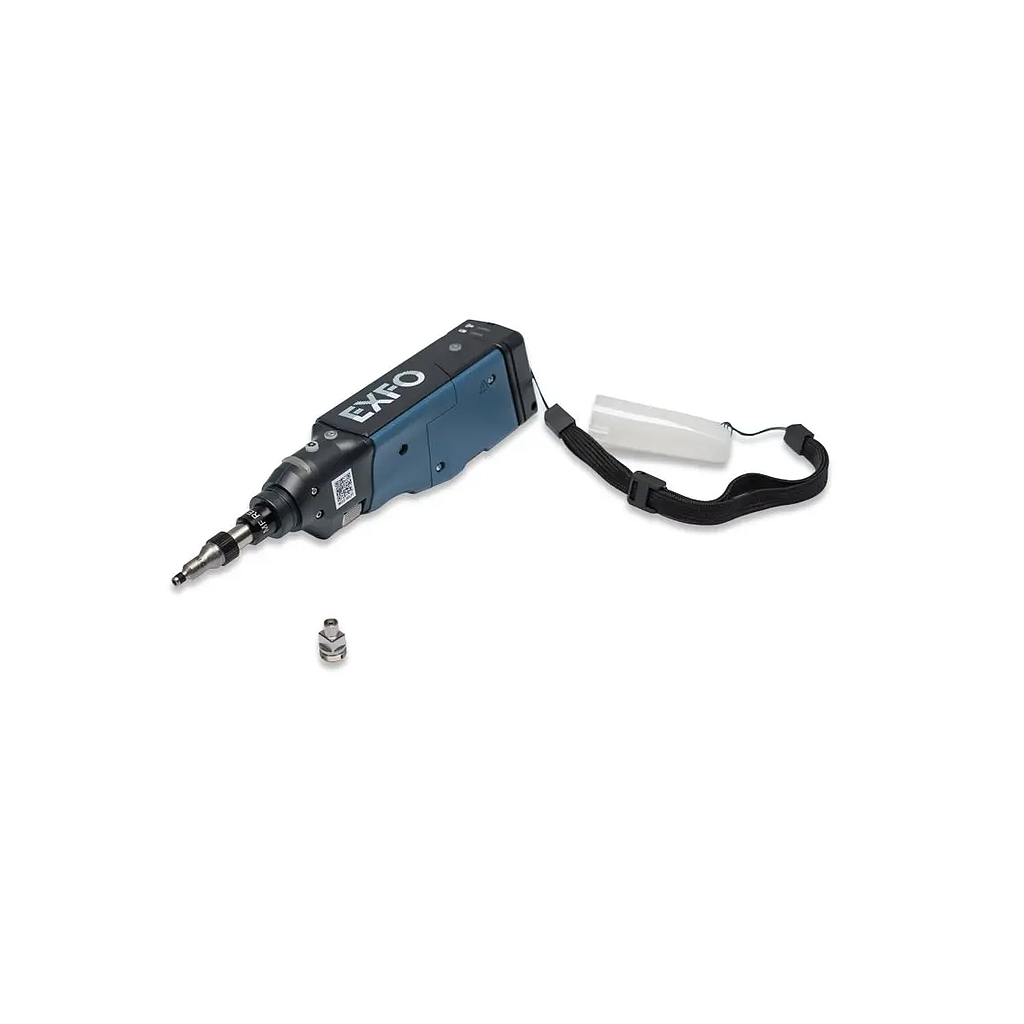

Video inspection probe (FIP-425B/435B)
Bulkhead and patch cord tips
GP-2175: Protective cap and cord assembly
FIPT-BOX: Compartmentalized plastic case for tips
GP-3108: Compartmented soft pouch
GP-2225: USB to micro USB cable
GP-2226: Rechargeable battery (qty. 1)
GP-2227: USB AC adapter
