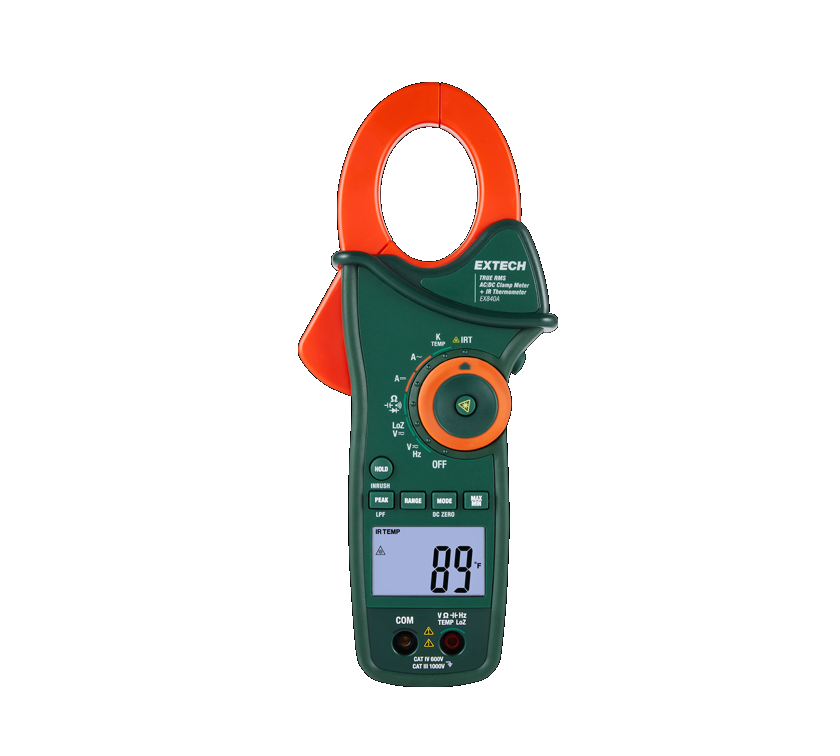

EXTECH EX840A Clamp Meters with IR Thermometer (1000A; True RMS; AC/DC; IR)

Type : AC+DC

True RMS : True RMS

Display Counts : 6000

Jaw Size : 43 mm (1.7 in)

AC Current : 0.1 A to 1000 A

DC Current : 0.1 A to 1000 A

Basic ACA Accuracy : ±(2.5% + 8d)

AC Voltage : 0.1 mV to 1000 V

DC Voltage : 0.1 mV to 1000 V

Resistance : 0.1 Ω to 60 M Ω

Capacitance : 0.001 nF to 40 mF

Frequency : 0.001 Hz to 100 kHz

Type K Temperature : -20°C to 760°C (-4°F to 1400°F)

Infrared Temperature : -50°C to 270°C (-58°F to 518°F)

Distance to Spot Ratio : 8:1

Peak Hold : Yes

Inrush : Yes

LoZ : Yes

Low Pass Filter : Yes

Safety Category : CAT IV-600 V

Operating Temperature : 0°C to 50°C (32°F to 122°F)

Dimensions: 270 mm × 110 mm × 50 mm(10.5 in × 4.3 in × 2.0 in)

Weight : 396 g (14 oz)
