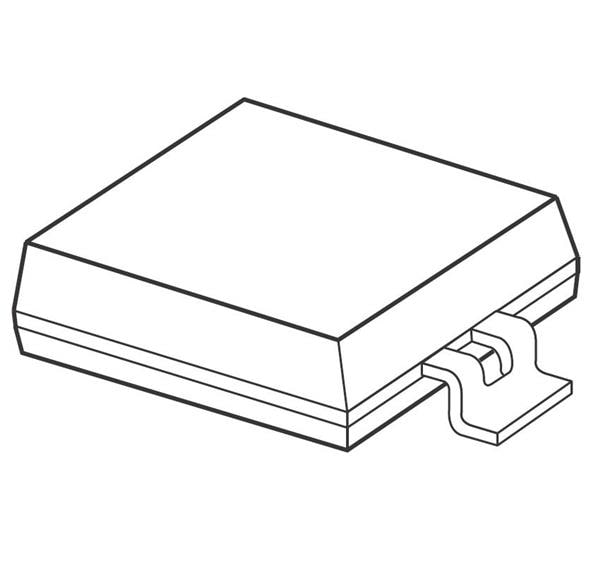

Fairchild QSB34GR PIN Photodiodes 120" Reception
Manufacturer: Fairchild Model: QSB34GR - Contact
Width: 3 mm
Height: 1.2 mm
Length: 3 mm
Fall Time: 50 ns
Rise Time: 50 ns
Unit Weight: 50 mg
Dark Current: 30 nA
Photocurrent: 37 uA
Mounting Style: SMD/SMT
Peak Wavelength: 940 nm
Moisture Sensitive: Yes
Vr - Reverse Voltage: 32 V
Pd - Power Dissipation: 150 mW
Half Intensity Angle Degrees: 60 deg
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
