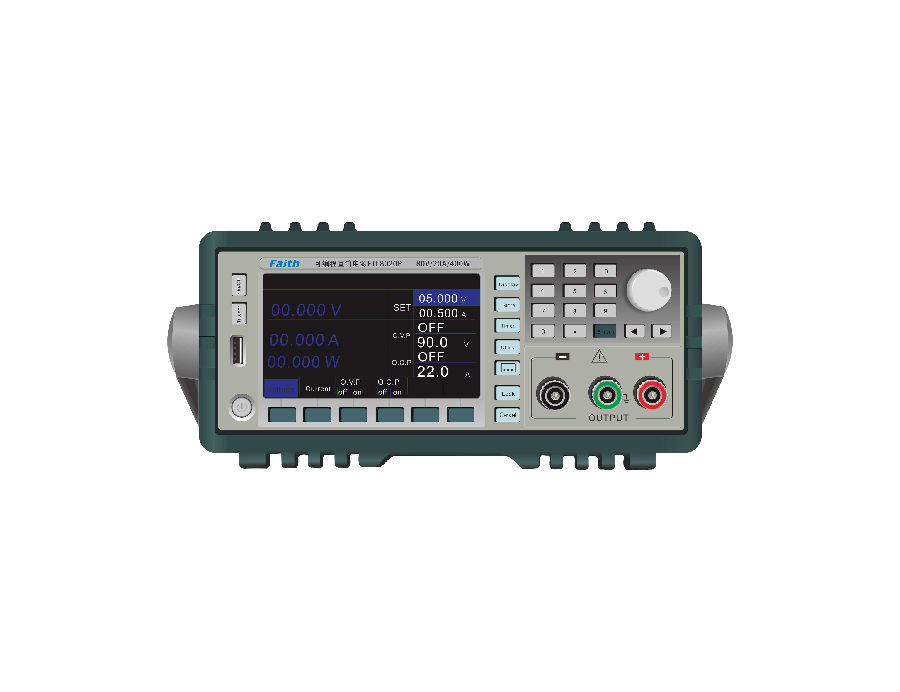

Faith FTL35110P-015 High Precision DC Power Supply (35V/110A/1500W)

Specification: 35V/110A/1500W

Voltage resolution: 1 mV

Current resolution: 10mA

Redundant output range: 35V/111A/1500W

Source effect: ≤0.01%+3mV

Load effect: ≤0.01%+3mV (I≤3A) / ≤0.02%+5mV (I>3A)

Recovery time: ≤100us (50% load change, minimum load 0.5A)

Ripple nosie: ≤1mV rms (I≤3A) (5Hz~1MHz) / ≤2mV rms (I>3A) (5Hz~1MHz)

Temperature coefficient: ≤100ppm/ ℃

Design accuracy: ±(0.03%+10mV) (25±5  ℃)

CC mode

Source effect: ≤0.1%+3mA

Load effect: ≤0.1%+3mA (I≤3A) / ≤0.1%+5mA (I>3A)

Ripple noise: ≤3mA rms (I≤3A) / ≤6mA   rms (I>3A)

Design accuracy: ±(0.1%+0.1% F.S.)(25±5 ℃)

Readback

Voltage: 5digits display

Current: 5digits display

Voltage accuracy: ±(0.02%of reading+5mV) (25±5℃)

Current accuracy: ±(0.1%of reading+0.1% of F.S.) (25±5 ℃)

Other features

Protection: OCP, OVP, OPP, OTP, reverse polarity protection, etc.

Remote sense: Max compensate voltage 5%F.S.

Battery charge: Support

Keypad lock: Support

Communication: Standard RS232, support SCPI (optional analog control interface, RS485, LAN, MODBUS)

Storage & recall: 100  Groups

Insulation: ≥ 20MΩ/500VDC

Input: AC   110V/220V±10%, 50/60Hz

Size: 352(D)×215(W)×89(H)mm

Weight: 6.8~9.8kg
