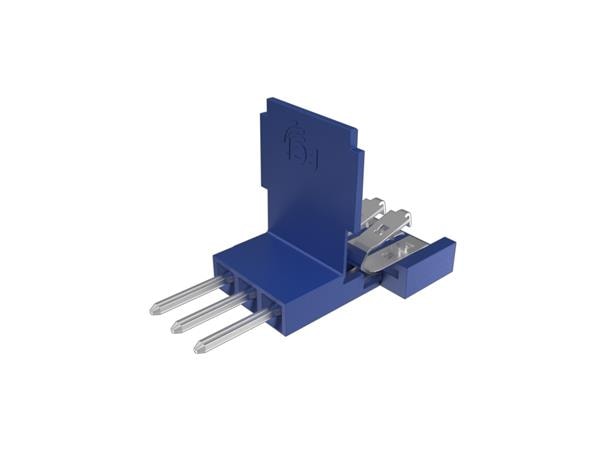

Amphenol FCI 66226-003LF Connectors Clincher™ Flex Connectors, Pin Assembly, Single row, 3 Positions, 2.54mm (.100in) Pitch.
Manufacturer: Amphenol FCI Model: 66226-003LF - Contact
Pitch: 2.54 mm
Gender: Male
Unit Weight: 3.461 g
Housing Color: Blue
Current Rating: 2 A
Mounting Angle: Vertical
Mounting Style: Cable
Voltage Rating: 500 V
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Termination Style: Crimp
Flammability Rating: UL 94 V-0
Number of Positions: 3 Position
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 65 C
