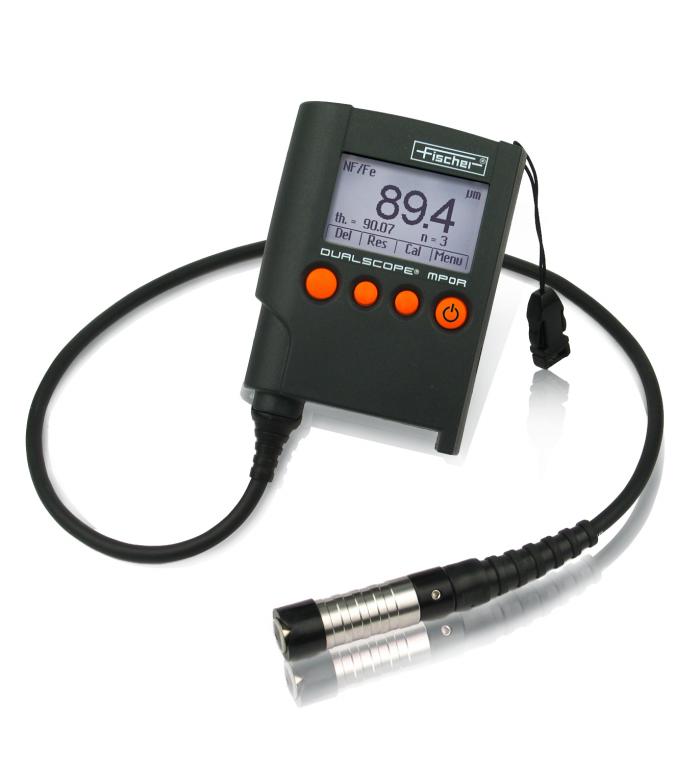

FISCHER DUALSCOPE MPOR-FP Paint Thickness Gauge (0–2000μm; Iso/Fe + NF/Fe+ Iso/NF)
Manufacturer: FISCHER Model: DUALSCOPE MPOR-FP P/N: 605-114 - Contact
• Measurement: Iso/Fe + NF/Fe+ Iso/NF
• Internal data storage for 10,000 readings
• Automatically rotating display
• Measurement range in µm: 0-2000
• Weight: 184 g
• Measuring speed: over 70 measurements/minute
• Available with Bluetooth
• FP models with connected cable probe for easy measurement in hard-to-reach places
• Automatically rotating displays for easy viewing of the measuring result
• Pre-installed measuring modes for coating thickness measurement according to IMO PSPC or SSPC-PA2
• USB interface for transmitting the readings and evaluation with FISCHER DataCenter software
Delivery contents
All devices of the MP0 and MP0R series come in a robust carrying case. Besides the measurement instrument, the shipment includes:
• 2 Batteries, LR6.AA 1.5 V
• Impact protection and Carrying strap
• Operation manual
• USB cable for devices with USB interface
• Material calibration standards corresponding to the respective measurement methods
• Calibration foils
Compact handheld gauge with built-in cabled probe including PC-interface for convinient and fast coating thickness measurement on virtually all metalic substrates. The measuring system automatically recognises the substrate material and selects the appropiate measurement method (magnetic induction or eddy current). On the FP models, permanently attached cable probes facilitate accurate measurements in hard-to-access locations and on a variety of specimen geometries.
Areas of application
-Coating thickness measurements on steel and non-ferrous metals like zinc, chrome, copper, paint, lacquer, or plastic coatings on steel, iron or cast iron
- Coatings of paint, lacquer or plastic on aluminum, copper or brass
- Anodized coatings on aluminum
- Suitable for both smooth and rough surfaces
