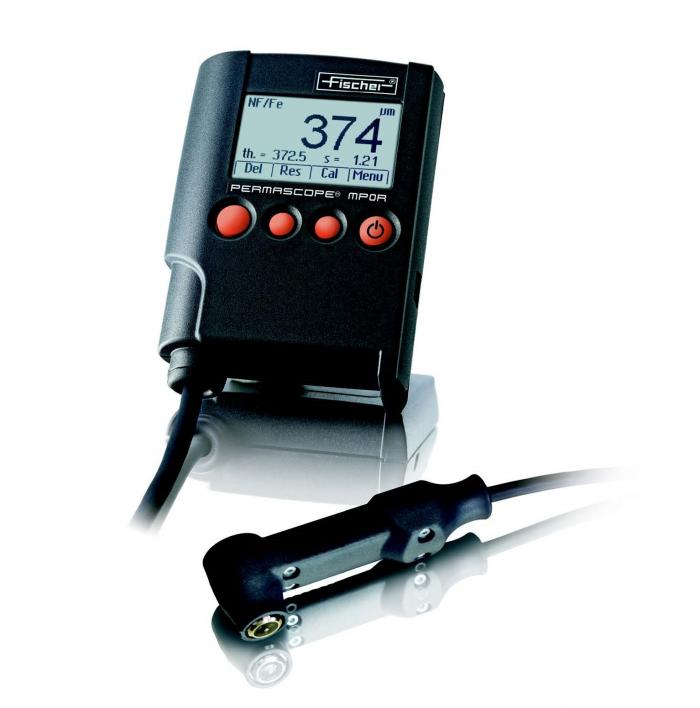

FISCHER PERMASCOPE MP0R-FPW Paint Thickness Gauge (0–2500μm; Iso/Fe + NF/Fe)
Manufacturer: FISCHER Model: PERMASCOPE MP0R-FPW P/N: 605-240 - Contact
• Measurement: Iso/Fe + NF/Fe
• Internal data storage for 10,000 readings
• Internal data storage for 10,000 readings
• Automatically rotating display
• Measurement range in µm: 0-2500
• Angled probe
• Weight: 184 g
• Measuring speed: over 70 measurements/minute
• Automatically rotating displays for easy viewing of the measuring result
• Pre-installed measuring modes for coating thickness measurement according to IMO PSPC or SSPC-PA2
• USB interface for transmitting the readings and evaluation with FISCHER DataCenter software
Delivery contents
All devices of the MP0 and MP0R series come in a robust carrying case. Besides the measurement instrument, the shipment includes:
• 2 Batteries, LR6.AA 1.5 V
• Impact protection and Carrying strap
• Operation manual
• USB cable for devices with USB interface
• Material calibration standards corresponding to the respective measurement methods
• Calibration foils
Details
Compact handheld gauge with built-in cabled probe for coating thickness measurement with magnetic induction. For measuring non-ferrous metallic and non-conductive coatings on steel or iron (NF/Fe and Iso/Fe).
Areas of application
• Precise coating thickness measurements of thin layers on steel and iron:like zinc, chrome, copper, paint, lacquer, or plastic coatings on steel, iron or cast iron
• Coating thickness measurements on both smooth and rough surfaces
