Instrument features
• DUPLEX measuring mode: display of paint on zinc on iron or paint on aluminium
• DUAL measuring mode: display of total thickness (paint and zinc) on iron or paint on aluminium
• Extensive evaluation and statistics functions
• Outlier control and tolerance monitoring options
• Various languages to choose from
• Battery and/or continuous operation via plug-in charger (included)
• Storage of up to 20 000 readings
• Data transfer via RS232 interface

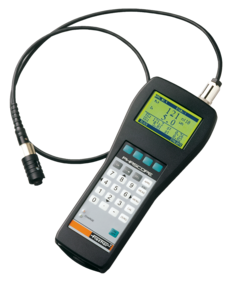

PHASCOPE® PMP10 DUPLEX- The automotive sector considers it the best paint meter for processing sheet metal, brake line tubing, wire and other industry-typical applications. Improve your quality processes and save time with the ultimate automotive coating thickness tester: the PMP10 DUPLEX from Fischer.
When paired with the ESG20 probe, the PHASCOPE PMP10 DUPLEX offers many features that can save time and improve quality assurance processes in automotive manufacturing. This thickness gauge measures both the paint and the zinc layers in one go – and displays them separately on the screen. The automatic substrate recognition feature makes it easy to measure on steel or aluminum without needing to switch probes.

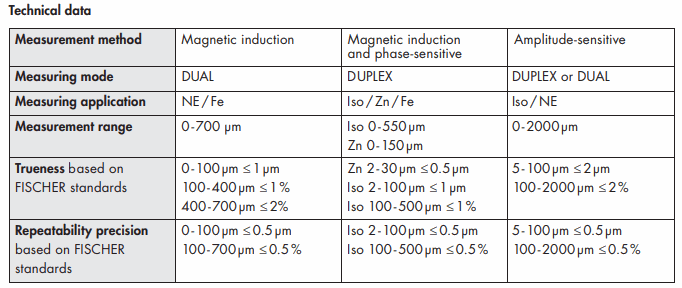

The PHASCOPE PMP10 DUPLEX combines three different methods for measuring automotive duplex coatings. The magnetic induction method according to DIN EN ISO 2178 measures the overall thickness of paint/zinc coatings on iron. The amplitude-sensitive eddy current method, DIN EN ISO 2360, measures a single paint layer on aluminum. The phase-sensitive eddy current method ISO 21968 measures just the zinc coatings on iron, ignoring any overlying paint layers.
Features
• Measure paint thickness on galvanized steel in a single procedure
• Coating thickness measurement of nickel, zinc or copper on steel, even on rough surfaces, using phase-sensitive measurement techniques
• With Fischer DataCenter, readings can be easily processed and reports generated
• Test onsite or in the field
Applications
• The best paint thickness gauge for duplex measurements such as paint/zinc on steel
• Paint on aluminum and paint on zinc on iron
• Easy measurement on curved geometries such as convex and concave surfaces as well as rough surfaces
• Thinnest coatings (micrometer) on non-ferrous metals, steel or iron
• Multilayer systems consisting of single, micrometer thin layers
Brochure
