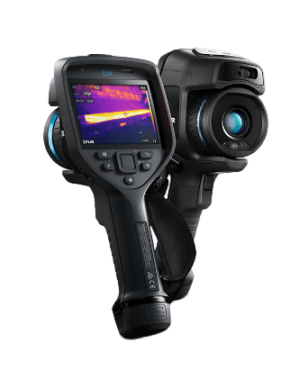

FLIR E96 24° Advanced Thermal Imaging Camera (7.5-14 µm; 640x480 px; f/1.3, -20~1500°C)

IR Resolution: 640 × 480 pixels

Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)

Accuracy: ±2°C (±3.6°F) or ±2% of the reading

Digital Camera: 5 MP, with built-in LED photo/video lamp

Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation

Storage Media: Removable SD card

Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava

Detector Type and Pitch: Uncooled microbolometer, 12 µm

Digital Camera: 5 MP, with built-in LED photo/video lamp

Digital Zoom: 1-8× continuous

f-number: 1.3

Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual

Image Frequency: 30 Hz

IR Resolution: 640 × 480 pixels

Lens Identification: Automatic

Minimum Focus Distance: 0.15 m

Non-radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi

Picture-in-Picture: Resizable and movable

Radiometric IR video recording: Real-time radiometric recording (.csq)

Radiometric IR video streaming: Yes, over UVC

Spectral Range: 7.5-14 µm

Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)

UltraMax: Yes

Viewfinder: No

MEASUREMENT & ANALYSIS

Accuracy: ±2°C (±3.6°F) or ±2% of the reading

Measurement Presets: No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2

Object Temperature Range: -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F)

Spot Meter: 3 ea. in live mode

USER INTERFACE

Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation

Text: Predefined list or touchscreen keyboard

Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®

POWER

Battery operating time: >2.5 hours at 25°C (68°F) and typical use

Battery Type: Rechargeable Li-ion battery

ENVIRONMENTAL

Operating Temperature Range: -15 to 50°C (5 to 122°F)

Storage Temperature Range: -40 to 70°C (-40 to 158°F)
