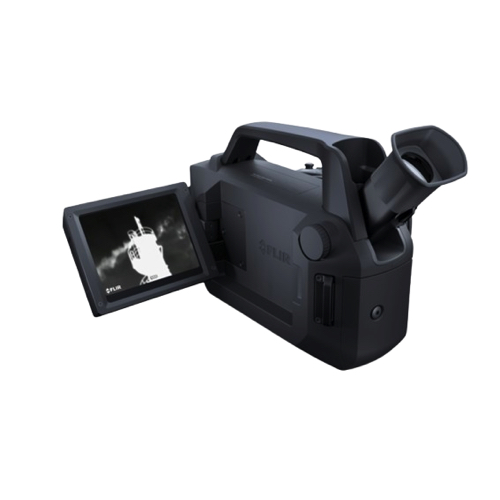

FLIR G304 24° Optical Gas Imaging Camera for Hydrofluorocarbons (320 × 240 pixels; 8.0 µm ~ 8.6 µm; 24° × 18°)

Imaging & Optical

IR Resolution: 320 × 240 pixels

Thermal Sensitivity/NETD: 15 mK at 30°C (86°F)

Detector Type: Focal plane array (FPA), cooled QWIP

Spectral Range: 8.0 µm to 8.6 µm

Detector Pitch: 30 µm

Sensor Cooling: Stirling Microcooler (FLIR MC-3)

Digital Image Enhancement: High sensitivity mode (HSM), noise reduction filter

Available Lenses: 24° × 18° (23 mm)

F-Number: 1.59

Focus: Autofocus, Manual focus

Image Presentation

Display: 4", 640 × 480 pixel rotatable, touchscreen LCD

Viewfinder: Built-in, tiltable OLED, 800 × 480 pixels

Image Presentation Modes: IR image, visual image, high sensitivity mode (HSM)

Color Palettes: Arctic, White hot, Black hot, Iron, Lava, Rainbow, Rainbow HC

Zoom: 1–8× continuous, digital zoom

Laser Pointer: Class 2

Measurement & Analysis

Measurement Temperature Range: -20°C to 250°C (-4°F to 482°F)

Accuracy: ±1°C (±1.8°F) for temperature range (0°C to 100°C, 32°F to 212°F) or ±2% of reading for temperature range (>100°C, >212°F)

Image Analysis: 10 spots, 5 boxes with max/min/average, 1 line (horizontal or vertical), measurement corrections

Annotations

Voice: 60 seconds with Bluetooth on still images and video

Text: Text from predefined list or soft keyboard on touchscreen

Image Sketch: Yes: on infrared only

Communication & Data Storage

FLIR Inspection Route: Enabled in the camera

MultiREC Recording: Record multiple files automatically in customizable order

GPS: Location data automatically added to every still image; first frame in video from built-in GPS; data logging feature

Compass: Yes

Cloud Services (via Wi-fi): FLIR Ignite for direct, secure image uploading, organizing, storage, and sharing (required firmware available)

Storage Media: Removable SD card

Image File Formats: Standard JPEG, measurement data included. Infrared-only mode.

Communication Interfaces: USB 2.0, Bluetooth via headset, Wi-Fi, HDMI

Video Out: HDMI; DVI

Video Recording and Streaming

Radiometric IR Video Recording: RTRR (.csq)

Non-Radiometric IR or Visual Video: H.264 to memory card

Radiometric IR Video Streaming: Over UVC

Non-Radiometric IR Video Streaming: H.264 (AVC) or MPEG4 over RTSP (Wi-Fi); MJPEG over UVC and RTSP (Wi-Fi)

Visual Recording: H.264 to memory card

Environmental & Certifications

Operating Temperature Range: -20°C to 50°C (-4°F to 122°F)

Storage Temperature Range: -30°C to 60°C (-22°F to 140°F)

Encapsulation: IP54 (IEC 60529)

Shock: 25 g (IEC 60068-2-27)

Vibration: 2 g (IEC 60068-2-6)

Additional Information

Battery Type: Rechargeable Li-ion battery; 7.4 V, charged in camera or separate 2-bay charger

Battery Operating Time: >2.5 hours at 25°C (68°F) and typical use

Battery Charging Time: 2.5 hours to 95% capacity, charging status indicated by LEDs

Camera Size: 251.6 mm × 164.5 mm × 170.9 mm (9.9 in × 6.48 in × 6.73 in)

Camera Weight: 3 kg (6.18 lb)

Mounting Interfaces: UNC ¼"-20
