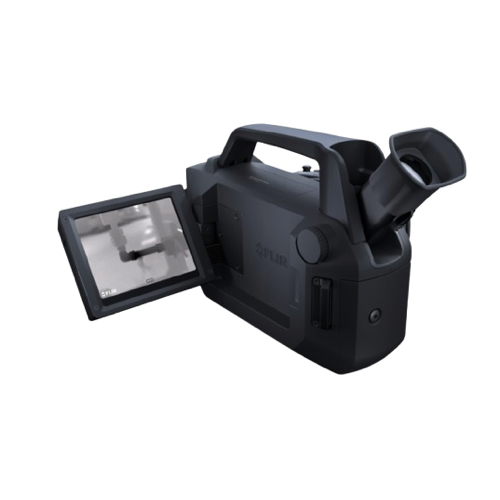

FLIR G343 24° Optical Gas Imaging (OGI) Camera for Carbon Dioxide (CO₂) (320 × 240, 4.2 µm ~ 4.4 µm; 24° × 18°)

Imaging & Optical

Adjustable Viewfinder: Built-in, tiltable OLED, 800 × 480 pixels

Camera f-number: 1.59

Color LCD: 4", 640 × 480 pixel rotatable, touchscreen LCD

Color Palettes: Arctic, White hot, Black hot, Iron, Lava, Rainbow, Rainbow HC

Detector Pitch: 30 μm

Detector Type: Focal plane array (FPA), cooled InSb

Display Frame Rate: 60 Hz

Field of View: 24° × 18° (23 mm)

Focus: Auto & Manual

Image Modes: IR image, visual image, high sensitivity mode (HSM), noise reduction filter

IR Resolution: 320 × 240 thermal resolution (76,800 pixels)

Laser Spot: Yes

MPEG Video Recording: Yes

On Camera Display: Widescreen 800 × 480 pixel LCD, Tiltable 800 × 480 pixel OLED viewfinder

Radiometric IR Video: RTRR (.csq), Over UVC

Radiometric JPG: Yes

Sensor Cooling: Stirling Microcooler (FLIR MC-3)

Spectral Range: 4.2 µm to 4.4 µm

Video Recording & Streaming: H.264 to memory card

Zoom: 1 – 8× continuous, digital zoom

Measurement & Analysis

Recording: MultiREC Recording; Record multiple files automatically in customizable order

Spot Meter: 10

Thermal Sensitivity: <15 mK @ 30°C (86°F)

Communication & Data Storage

Communication Interfaces: USB 2.0, Bluetooth via headset, Wi-Fi, HDMI

Image File Format: Standard JPEG, measurement data included. Infrared-only mode

Storage Media: Removable SD card

Video Out: HDMI, DVI

General

Size [L x W x H ] w Lens: 251.6 mm × 164.5 mm × 170.9 mm (9.9 in × 6.48 in × 6.73 in)

Weight [incl lens & batteries]: 3 kg (6.18 lb)

Power

Battery operating time: >2.5 hours at 25°C (68°F) and typical use

Battery type: Rechargeable Li-ion battery; 7.4 V, charged in camera or separate 2-bay charger

Charging Time: 2.5 hours to 95% capacity, charging status indicated by LEDs

Start Up Time: Typically 7 min. at 25°C (77°F)

Environmental & Certifications

Encapsulation: IP54 (IEC 60529)

Mounting: UNC ¼"-20

Operating Temperature Range: -20°C to 50°C (-4°F to 122°F)

Shock & Vibration: Shock: 25 g (IEC 60068-2-27); Vibration: 2 g (IEC 60068-2-6)

Storage Temperature Range: -30°C to 60°C (-22°F to 140°F)
