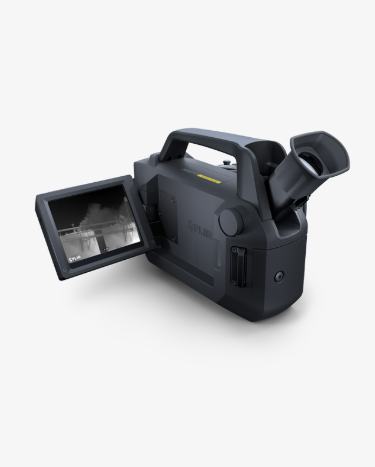

FLIR Gx320 24° Optical Gas Imaging (OGI) Cameras for Hydrocarbons (-20°C ~ 350°C, 76,800 pixel, 30 μm)

IR Resolution: 320 × 240 thermal resolution (76,800 pixels)

Detector Pitch: 30 μm

Accuracy: ±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F)

Spectral Range: 3.2 µm to 3.4 µm

Hazardous Location Compliance: ATEX/IECEx, Ex ic nC op is IIC T4 Gc II 3 G

ANSI/ISA-12.12.01-2013, Class I Division 2

CSA 22.2 No. 213, Class I Division 2

Imaging & Optical

Adjustable Viewfinder: Built-in, tiltable OLED, 800 × 480 pixels

Camera f-number: 1.59

Color LCD: 4", 640 × 480 pixel rotatable, touchscreen LCD

Color Palettes: Arctic, White hot, Black hot, Iron, Lava, Rainbow, Rainbow HC

Detector Pitch: 30 μm

Detector Type: Focal plane array (FPA), cooled InSb

Display Frame Rate: 60 Hz

Field of View: 24° × 18° (23 mm)

Focus: Manual

Image Analysis: 10 spots, 5 boxes with max/min/average, 1 line (horizontal or vertical), measurement corrections

Image Modes: IR image, visual image, high sensitivity mode (HSM), noise reduction filter

IR Resolution: 320 × 240 thermal resolution (76,800 pixels)

Laser Spot: Yes

MPEG Video Recording: Yes

Non-Radiometric IR Video: H.264 (AVC) over RTSP (Wi-Fi), MPEG4 over RTSP (Wi-Fi), MJPEG over UVC and RTSP (Wi-Fi)

On Camera Display: Widescreen 800 × 480 pixel LCD, Tiltable 800 × 480 pixel OLED viewfinder

Radiometric IR Video: RTRR (.csq), Over UVC

Radiometric JPG: Yes

Sensor Cooling: Stirling Microcooler (FLIR MC-3)

Spectral Range: 3.2 µm to 3.4 µm

Video Recording & Streaming: H.264 to memory card

Zoom: 1 – 8× continuous, digital zoom

Measurement & Analysis

Accuracy: ±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F)

Area Box: 5 (min./max./avg.)

Delta T: Yes

Gas Quantification: Quantification onboard camera

Gas Sensitivity: CH₄: <9.6 ppm x m; Hydrocarbons (multiple): <4 ppm x m; (ΔT = 10°C, Distance = 1 m)

Measurement Corrections: Reflected temperature, distance, atmospheric transmission, humidity, external optics

Profile: 1 live line (horiz. or vert.)

Recording: MultiREC Recording; Record multiple files automatically in customizable order

Spot Meter: 10

Temperature Range: -20°C to 350°C (-4°F to 662°F)

Available sub ranges:

-20°C to 10°C (-4°F to 50°F)

-10°C to 25°C (14°F to 77°F)

10°C to 50°C (50°F to 122°F)

40°C to 85°C (104°F to 185°F)

70°C to 120°C (158°F to 248°F)

100°C to 160°C (212°F to 320°F)

130°C to 200°C (266°F to 392°F)

180°C to 260°C (356°F to 500°F)

240°C to 350°C (464°F to 662°F)

Thermal Sensitivity: <10 mK at 30°C (86°F)

Communication & Data Storage

Communication Interfaces: USB 2.0, Bluetooth via headset, Wi-Fi, HDMI

Image File Format: Standard JPEG, measurement data included. Infrared-only mode

Radio: Operating frequency:

•Bluetooth + EDR: 2402–2480 MHz

•WLAN 2.4 GHz: 2412–2462 MHz

•WLAN 5 GHz: 5150-5250 MHz Note that frequency band 5150-5250 MHz is for indoor use only, see national regulations.

RF output (EIRP)

• Bluetooth + EDR: <10 dBm

•WLAN: <17 dBm

Antenna

•Integrated PIFA antenna (gain: maximum 2.6 dBi)

Storage Media: Removable SD card

Video Out: HDMI 640 × 480, HDMI 1280 × 720, DVI 640 × 480, DVI 800 × 600

General

Annotations: Voice: 60 seconds with Bluetooth on still images and video

Text: Text from predefined list or soft keyboard on touchscreen

Image Sketch: Yes, on infrared only

Cloud Services: Via Wi-Fi; FLIR Ignite for direct, secure image uploading, organizing, storage, and sharing (required firmware available)

FLIR Inspection Route: Enabled in the camera

GPS [removable]: Location data automatically added to every still image and first frame in video from built-in GPS

Laser Pointer: Class 2

Package Includes: Infrared camera with lens, battery (2 pcs), battery charger, power supply including multi-plugs, hand strap, neck strap, lens cap, lens cap strap, memory card, HDMI-HDMI cable, USB cable, screwdriver TX20, knob screw (optional screw for the rear cover), printed documentation, hard transport case

Packaging Size: 600 mm × 510 mm × 410 mm (23.6 in × 20.1 in × 16.1 in)

Size [L x W x H ] w Lens: 251.6 mm × 164.5 mm × 170.9 mm (9.9 in × 6.48 in × 6.73 in)

Weight [incl lens & batteries]: 3 kg (6.18 lb)

User Interface

Languages: 21

Power

Battery operating time: >2.5 hours at 25°C (68°F) and typical use

Battery Type: Rechargeable Li-ion battery; 7.4 V, charged in camera or separate 2-bay charger

Charging Time: 2.5 hours to 95% capacity, charging status indicated by LEDs

Start Up Time: Typically 7 min. at 25°C (77°F)

Environmental & Certifications

Certifications: RoHS: 2011/65/EU

WEEE: 2012/19/EU

RED: 2014/53/EU

EMC: ETSI EN 301 489-1 (radio), ETSI EN 301 489-17, EN 55032 (emission), EN 55035 (immunity), EN 61000-4-8 Level 5 (magnetic field), EN 61000-6-2, Immunity Industrial Environment, FCC 47 CFR part 15 B, class B (emission), ICES-003

Encapsulation: IP54 (IEC 60529)

Hazardous Location Compliance: ATEX/IECEx, Ex ic nC op is IIC T4 Gc II 3 G

ANSI/ISA-12.12.01-2013, Class I Division 2

CSA 22.2 No. 213, Class I Division 2

Mounting: UNC ¼"-20

Operating Temperature Range: -20°C to 50°C (-4°F to 122°F)

Shock & Vibration: Shock: 25 g (IEC 60068-2-27); Vibration: 2 g (IEC 60068-2-6)

Storage Temperature Range: -30°C to 60°C (-22°F to 140°F)
