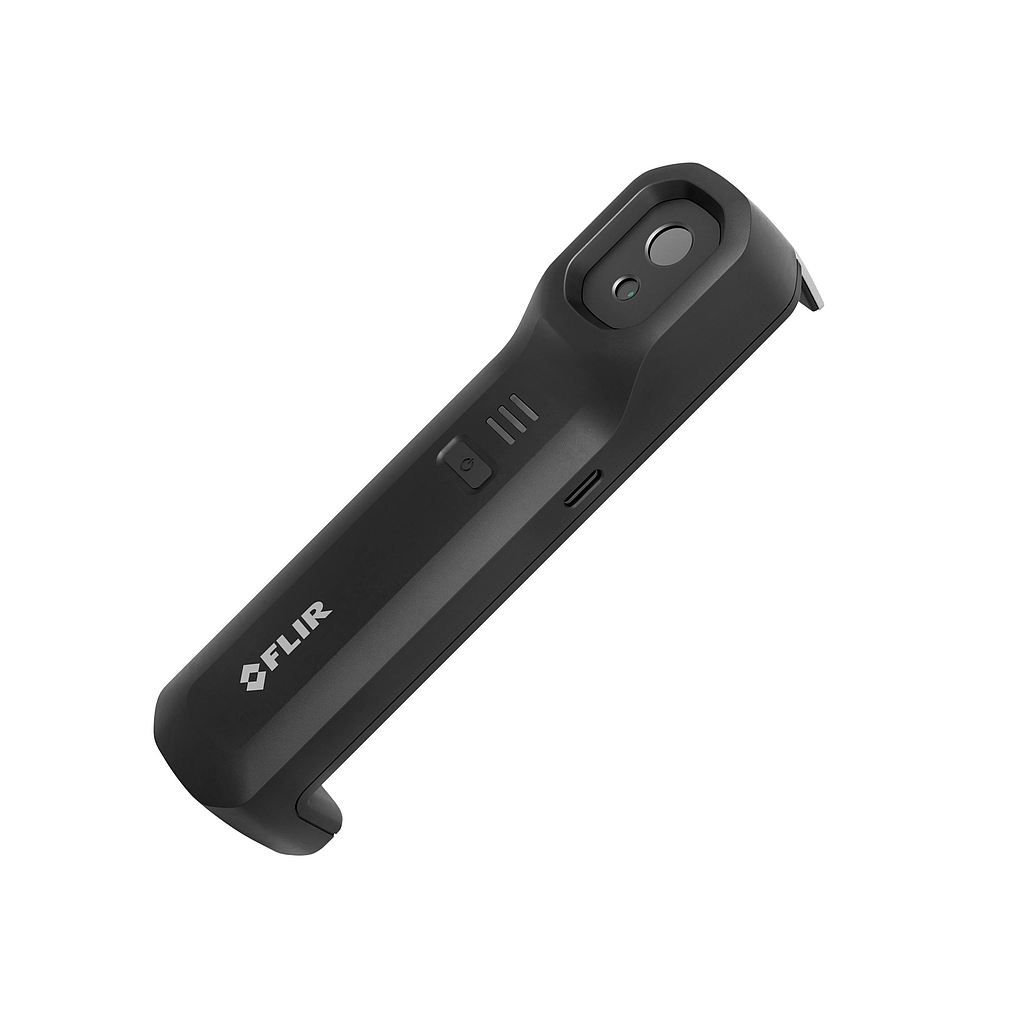

FLIR ONE Edge Pro Thermal Camera with Wireless Connectivity for iOS® and Android™ Smart Devices (160 × 120 (19,200 pixels))

Thermal Resolution: 160 × 120 (19.200 pixels)

Battery Life: Approximately 2 hours 30 minutes

Object Temperature Range: -20°C -120°C (-4°F-248°F) and 0°C -400°C (32°F-752°F)

Accuracy: ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)

Operating Temperature: -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)

Spot Meter: Hottest, Coldest and 3 spot measurement

Adjustable MSX distance: 30 cm - Infinity

Focus: Fixed 30 cm - Infinity

Frame Rate: 8.7 Hz

HFOV/VFOV: 54° ±1° / 42° ±1°

Image Modes: Infrared, visual, MSX

Palette: Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel

Shutter: Automatic/Manual

Thermal Resolution: 160 × 120 (19,200 pixels)

Thermal Sensitivity/NETD: 70 mK

Thermal Sensor: Pixel size 12 µm, 8 - 14 µm spectral range

Visual Resolution: 640 × 480

VividIR: Yes

POWER

Battery charge time: 60–90 min for fully charged, 15 min charging from empty battery, gives 40 min operating time

Battery Life: Approximately 2 hours 30 minutes

Charging Method: Female USB-C (5V/1A)

MEASUREMENT & ANALYSIS

Accuracy: ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)

Measurement Corrections: Emissivity; Reflected apparent temperature (22°C / 72°F)

Object Temperature Range: -20°C - 120°C (-4°F- 248°F) and 0°C-400°C (32°F-752°F)

Spot Meter: Hottest, Coldest and 3 spot measurement

GENERAL

Battery charge monitor: 0 - 100%

Clip Span: 130 mm (min) / 195 mm (max)

Compatible with FLIR software: FLIR ONE app, FLIR Ignite, FLIR Thermal Studio

Device Compatibility: iOS (version 16 and later) or Android (version 12 and later) smartphones and tablets

Dimensions (H x W x D): 37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in)

Remote Operation: Up to 5 m (16.4 ft) from smart device via Wi-Fi

Weight: 153 g (5.4 oz)

ENVIRONMENTAL & CERTIFICATIONS

Certifications: RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU, IP54

Drop test: Drop from 2 m (6.56 ft)

Emissivity Settings: Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%

Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Temperature: -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)

COMMUNICATION & DATA STORAGE

Bluetooth: Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device

Capture modes: Video, Still image

Charging: Female USB-C (5V/1A)

File Formats: Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android))

WiFi: IEEE 802.11 a/b/g/n
