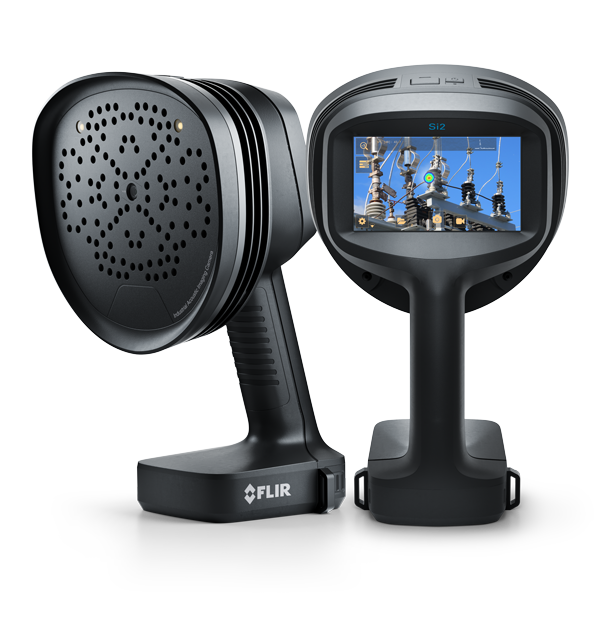

Acoustic measurement: 124 low-noise MEMS microphones, real-time sound
visualization
Detection threshold
20 kHz: -15 dB SPL
35 kHz: 4 dB SPL
50 kHz: 10 dB SPL
80 kHz: 36 dB SPL
100 kHz: 51 dB SPL
Bandwidth 2–130 kHz
Directional resolution: From 1° up to 0.125°
Operating distance: From 0.3 m (1.0 ft) up to 200 m (656 ft)
Digital camera: 12 MP color
Camera field of view: 75° diagonal
Video frame rate: Camera: 60 fps; Acoustic image: 30 fps; Screen: 70 fps
Zoom: 8x Digital zoom
Video image resolution: 1280 × 720
User Interface
Display S
ize: 5 in. 1280 × 720
Resistive touch screen, TFT LCD, MIPI DSI
Integrated flashlight: LEDs, two modes: ON / OFF
Data transfer:
Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless
LAN, USB memory stick, Acoustic USB Adapter Cable
Camera power input
Nominal input voltage: 12 V DC
Max input: 17 V DC , 3.3 A (limited)
Battery
Li-Ion rechargeable battery pack (RRC 2054):14.4 V DC, 3.45 Ah, 49.68 Wh
Usage: Up to 2.5 h
Charge time: approx. 2 h
Max output: 16.8 V DC, 5 A
Ingress protection: IP54
Camera size: 184 x 276 x 167 mm (7.2. x 10.8 x 6.5 in)
Camera weight: ~ 1.2 kg
Battery size: 85 × 77 mm (RRC2504)
Battery weight: ~ 0.25 kg
