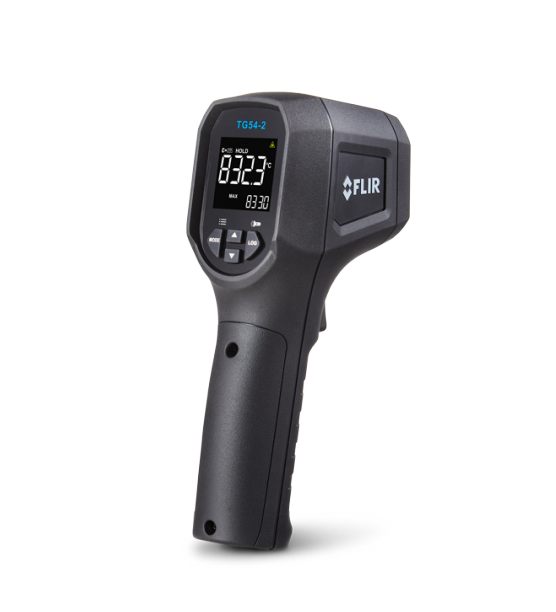

FLIR TG54-2 Spot IR Thermometer (-30°C ~ 850°C, 20:1)

Imaging and Optical

Display: 1.57” Color EBTN

Laser Orientation: Single point laser to upper edge of measurement

Laser Power: <1mW, Class II

IR Range: -30°C to 850°C (-22°F to 1562°F)

Spectral Response: 8 µm to 14 µm

Measurement and Analysis

AVG: Last 20 readings

Basic Accuracy: 0°C to 100°C (32°F to 212°F): ±1.0°C (±1.8°F)

Differential (MAX/MIN): Yes

Distance to Spot Ratio (D:S): 20:1

Emissivity: 0.01 to 1.00 with 5 presets

Max/Min: Min/Max/Avg/Dif

Measurement Resolution: 0.1°C / 0.1°F

Response: 250 Milliseconds

Power

Auto Power Off: 5 or 15 seconds (selectable)

Continuous Run Time: 8 hours maximum continuous temperature measurements

Power Source: 9V alkaline battery (included)

General

Alarm: High/low alarms with programmable set points

Alarm Alert: HI or LO will flash on the display

Datalogging: Manual and automatic data logger

Dimensions (L × W × H): 192 mm × 94 mm × 64 mm (7.5 in × 3.7 in × 2.5 in)

Includes: Spot IR Thermometer, 9V battery, Quick Start Guide and Storage Pouch

Memory: 2 × 99 sets data storage

Scanning Mode: Yes

Weight: 292 g (10.3 ounces)

Worklights: Yes

Drop Test: 3 m (9.8 ft)
