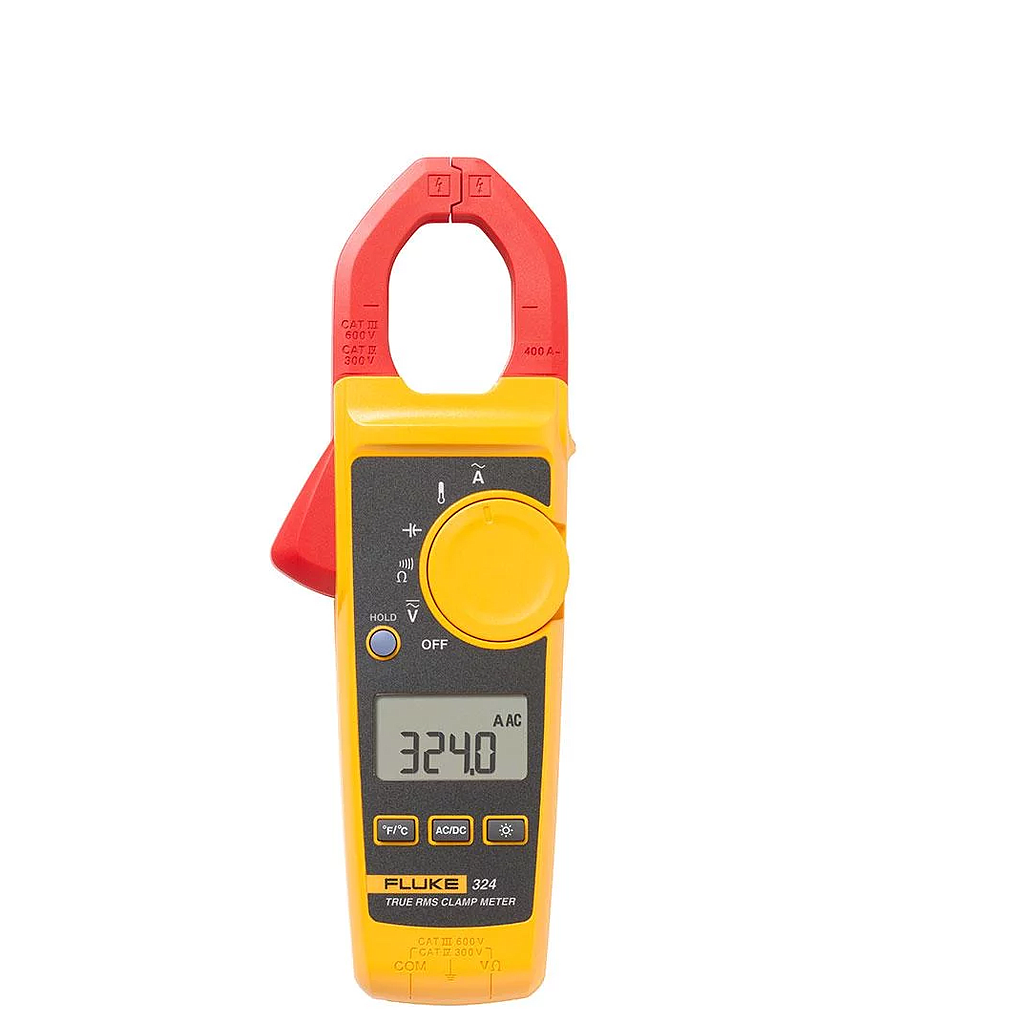

ACA: 40.00A , 400.0 A /1.5 %
ACV: 600.0 V /1.5 %
DCV: 600.0 V /1.0 %
R: 400.0 Ω/ 4000 Ω /1.0 %
C: 100.0 μF to 1000 μF
Temperature: -10.0 °C to 400.0 °C
Continuity: 70 Ω
AC response: True-rms
Data hold: Yes
Size: H x W x D (mm): 207 x 75 x 34
Max wire diameter: 30 mm
Weight: 208 g
Includes: Test leads, Soft case, manual
|
Specifications |
||||
|
|
324 |
|||
|
AC current |
Range |
400.0 A |
40.00 A/400.0 A |
40.00 A/400.0 A |
|
Accuracy |
2 % ± 5 digits |
1.5 % ± 5 digits |
2 % ± 5 digits |
|
|
DC current |
Range |
- |
- |
40.00 A/400.0 A |
|
Accuracy |
- |
- |
2 % ± 5 digits |
|
|
AC voltage |
Range |
600.0 V |
600.0 V |
600.0 V |
|
Accuracy |
1.5 % ± 5 digits |
1.5 % ± 5 digits |
1.5 % ± 5 digits |
|
|
DC voltage |
Range |
600.0 V |
600.0 V |
600.0 V |
|
Accuracy |
1.0 % ± 5 digits |
1.0 % ± 5 digits |
1.0 % ± 5 digits |
|
|
Resistance |
Range |
400.0 Ω/ 4000 Ω |
400.0 Ω/ 4000 Ω |
400.0 Ω/ 4000 Ω/ 40.00 kΩ |
|
Accuracy |
1.0 % ± 5 digits |
1.0 % ± 5 digits |
1.0 % ± 5 digits |
|
|
Continuity |
≤ 70 Ω |
≤ 30 Ω |
≤ 30 Ω |
|
|
Capacitance |
- |
100.0 μF to 1000 μF |
100.0 μF to 1000 μF |
|
|
Frequency |
- |
- |
5.0 Hz to 500.0 Hz |
|
|
AC response |
True-rms |
True-rms |
True-rms |
|
|
Backlight |
- |
Yes |
Yes |
|
|
Data hold |
Yes |
Yes |
Yes |
|
|
Contact temperature |
- |
-10.0 °C to 400.0 °C |
-10.0 °C to 400.0 °C |
|
|
Min/Max |
- |
- |
Yes |
|
|
Size |
H x W x D (mm) |
207 x 75 x 34 |
207 x 75 x 34 |
207 x 75 x 34 |
|
Max wire diameter |
30 mm (600 MCM) |
30 mm (600 MCM) |
30 mm (600 MCM) |
|
|
Weight |
265 g |
208 g |
283 g |
|
|
Category rating |
CAT III 600 V |
CAT III 600 V |
CAT III 600 V |
|
320 Series Clamp Meters Datasheet »
