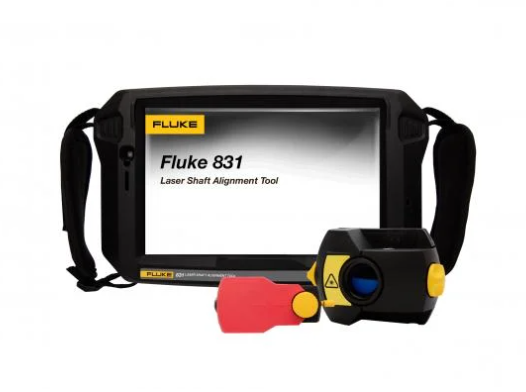

FLUKE FLUKE-831 ROW Laser Shaft Alignment Tool

Computer

General specifications

CPU
Processor: Exynos 9810, 2.7GHz,1.7GHz Octa-Core

Memory: 4 GB RAM, 64 GB Flash memory

Display
Technology: TFT

Integrated light sensor for automated adjustment of the brightness to the display according to the lighting conditions hence extending battery life.

Resolution: 1920 x 1200 Pixel

Size: 203.1 mm (8”)

Connectivity
Wi-Fi: 802.11 a/b/g/n/ac/ax 2.4G+5GHz, HE80, MIMO, 1024-QAM.

Wireless: 5.0

RFID: NFC

Camera
Main camera resolution: 13.0 MP, Auto Focus

Front camera resolution: 5.0 MP

Environmental protection IP 68: dustproof, submersible 1.5 m

Temperature range Operation: -20°C to 50°C (-4°F to 122°F)

Battery
Battery Type: Li-Ion rechargeable battery 3.8 V / 5

3.8 V / 5050 mAh / 19.2 Wh Operating time: Up to 11 hours

Dimensions (without hand straps): Approx. 256 x 149 x 35 mm (10 5/64” x 5 55/64” x 1 3/8”)

Weight (without hand straps): Approx. 710 g (1.6 lbs)

Reflector (prism)

General specifications

Type; 90° roof prism

Accuracy (average): > 99%

Environmental protection: IP 67 (submersible, dustproof)

Temperature range

Operation temperature range: -20°C to 60°C (-4°F to 140°F)

Storage temperature range: -20°C to 80°C (-4°F to 176°F)

Dimensions Approx. 100 x 41 x 35 mm (4” x 1 5/8” x 1 3/8")

Weight: Approx. 65 g (2.3 oz)

Sensor

General specifications

Measurement principle: Coaxial, reflected laser beam

LED indicators
1 LED for laser beam status and battery status

1 LED for wireless communication

Power supply

Battery: Lithium-Ion rechargeable battery 3.7 V / 5 Wh

Operating time: 10 hours (continuous use)

Charging time:

Using charger - 2.5 h for up to 90%

3.5 h for up to 100%

Using USB port – 3 h for up to 90%

4 h for up to 100%

Environmental protection

IP 65: Dustproof and water jets resistant, shockproof

Relative humidity: 10% to 90% (non-condensing)

Ambient light protection: Yes

Temperature range

Operation temperature range: -10°C to 50°C (14°F to 122°F)

Charging temperature range: 0°C to 40°C (32°F to 104°F)

Storage temperature range: -20°C to 60°C (-4°F to 140°F)

Dimensions: Approx. 105 x 69 x 55 mm

(4 9/64” x 2 23/32” x 2 11/64”)

Weight: Approx. 210 g (7.4 oz) with dust cap

Detector

Measurement range: Unlimited, dynamically extendible

Resolution: 1 μm (0.04 mil) and angular 10 μRad

Error (avg): < 2%

Inclinometer

Measurement range: 0° to 360°

Resolution: 0.1°

Error (avg): 0.3% full scale

Laser

Type: Semiconductor laser diode

Wavelength: 630 - 680 nm (red, visible)

Safety class: Class 2 according to IEC 60825-1:2014. The laser complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

Beam power: < 1 mW

Beam divergence: < 0.3 mrad

Safety precautions: Do not look into laser beams.

External interface: Wireless communication

Transmission distance: Up to 30 m (98 ft) direct line of sight

CE Conformity Hereby, Fluke declares that the radio equipment contained in this product is in compliance with Directive 2014/53/ EU.
