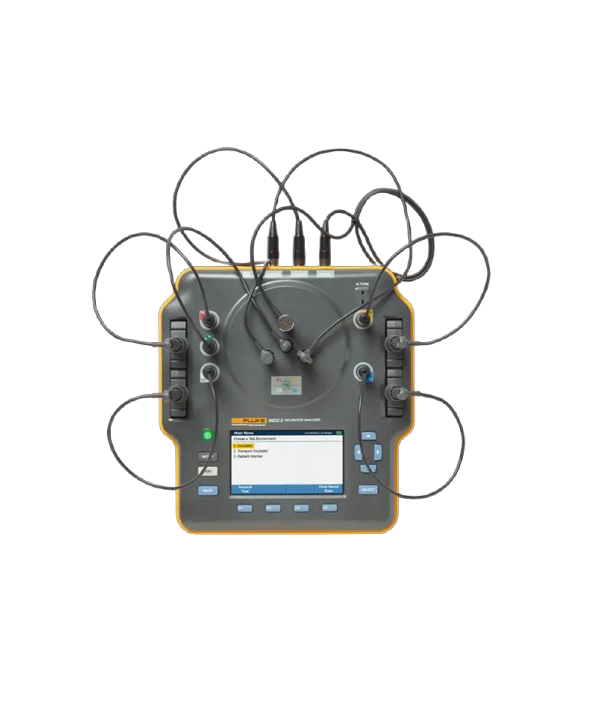

Fluke (Biomedical) INCU II-NO BT Incubator Radiant Warmer Analyzer (Non-Wireless)

Physical Specifications

Size (H × W × L without sensors): 23 cm × 21 cm × 6 cm (9.0 in × 8.5 in × 2.5 in)

Total weight: 12.2 cm × 9.7 cm × 4.8 cm (4.8 in × 3.8 in × 1.9 in)

Weight with sensors: 1.4 kg (3 lb)

Pucks (5): 2.5 kg (5.5 lb)

Carrying case: 1.1 kg (2.5 lb)

Power

Power adapter — Universal voltage

Input: 100 V to 240 V with adapters, 50 Hz/60 Hz

Output: 15 V DC, 1.3 A maximum

Internal rechargeable lithium-ion battery

Battery: 7.4 V, 7.8 Ah, 58 Wh

Battery life: 24 hours with a 30-second sample rate

Measurements and Test Specifications

Air Convection Peripheral Temperature Sensors for Incubator (T1–T5)

Number of sensors: 5

Range: 0°C to 50°C

Accuracy: ±0.05°C

Display resolution: 0.01°C

Relative Humidity

Range: 0% to 100%

Accuracy: ±3% RH (0% to 100%, non-condensing)

Display resolution: 0.1% RH

Airflow

Range: 0.2 m/s to 2.0 m/s at 35°C, 50% RH

Accuracy: ±0.1 m/s

Display resolution: 0.01 m/s

Sound Pressure

Range: 30 dB(A) to 100 dB(A)

Accuracy: ±5 dB(A)

Display resolution: 0.1 dB(A)

Standard: IEC 61672-1 Class 2 from 31.5 Hz to 8 kHz

Surface Temperature

Range: -5°C to 60°C

Accuracy: ±0.5°C

Display resolution: 0.05°C

Environmental Specifications

Operating temperature: 10°C to 40°C

Storage temperature: -20°C to 60°C

Humidity: 10% to 90% non-condensing

Altitude: 2000 m

Ingress protection rating: IP20

Wireless Radio

Frequency range: 2412 MHz to 2483 MHz

Output power: 10 mW

Interface

Push navigation buttons: Power on/off, test, select, back, and arrow keys

User preferences: Adjust backlight, display brightness, and set clock

Recall and run templates on tester

General and personalized test templates allow on-board test automation

Templates: Time duration, frequency of data capture, and tests

Select user preferences: Units of measure; view test results of current and past tests on the analyzer

Battery life indicator: Indicator bar shows remaining battery life

Interface languages: English, French, German, Italian, Spanish, Brazilian Portuguese, Simplified Chinese, Japanese, Russian, Polish
