Manufacturer: Fluke

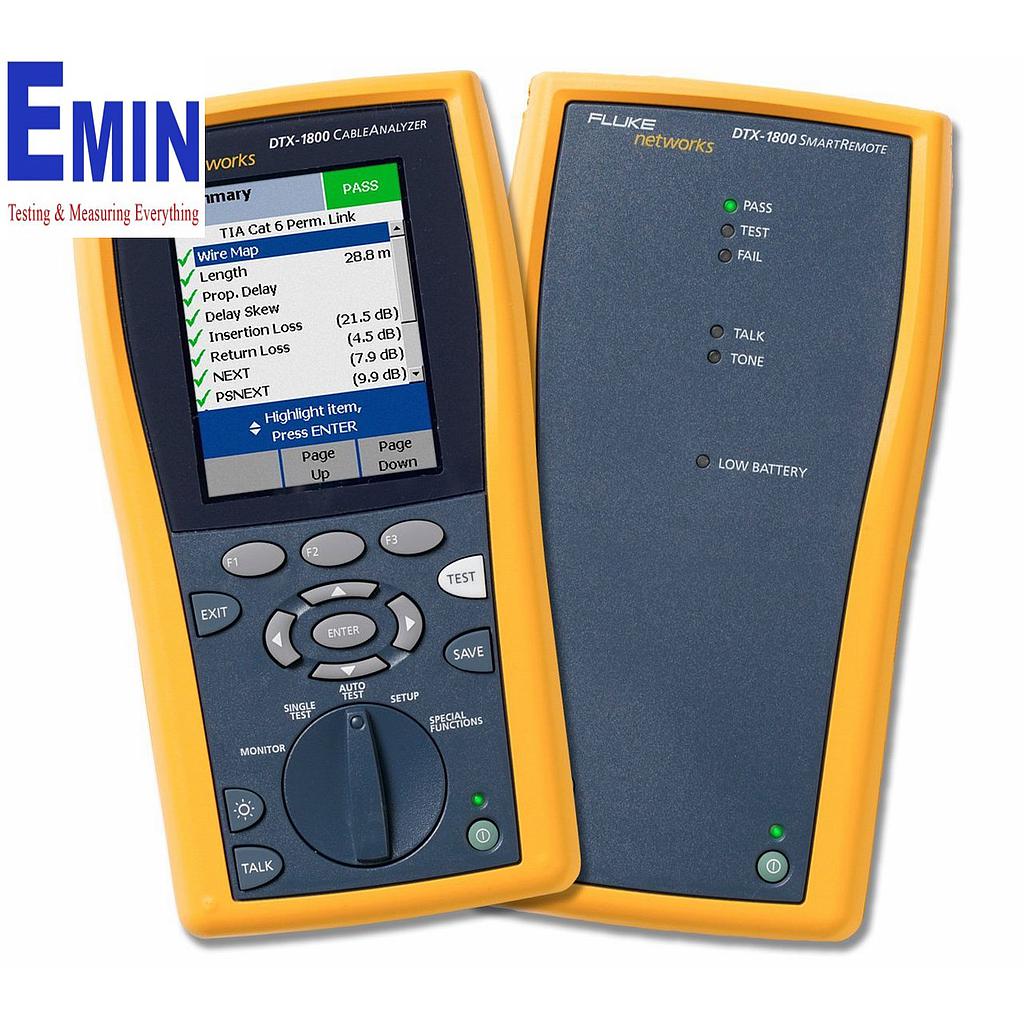

Model: DTX-1800
Warranty: 12 month
Made in USA
Feature:
Over 1 billion copper links certified to date
Independently verified by ETL to meet ISO Level IV and TIA Level IIIe Accuracy requirements
Analyze test results and create professional test reports using LinkWare reporting software
Endorsed by over 20 cable companies worldwide
Perform basic fiber certification with DTX modules
Specifications:
Supported Tests Parameters: Wire Map,Length,Propagation Delay,Delay Skew,DC Loop Resistance,Insertion Loss (Attenuation),Return Loss
Cable Types: Shielded and unshielded Twisted Pair (STP, FTP, SSTP and UTP) LAN cabling
Test Standards: TIA Category 3, 5e, 6 & 6A per ANSI/TIA-568-C.2, TIA Category 5 (1000BASE-T) per TIA TSB-95
Speed of Autotest:9 seconds
Save result:250-600 result
Power:12-14 hours charging 4 hours
Options:
DTX-OTDR-QMODDTX Compact OTDR Module: Includes 850/1300/1310/1550 OTDR Module and carrying case
DTX-1800/SRDTX-1800 Smart Remote Add-on
DTX-10GKITAlien Crosstalk Analyzer Kit for DTX-1800 Bao g?m hai DTX-AXTLK1 Communication Modules
DTX-AXKITAlien Crosstalk Analyzer Kit for DTX-1800 Bao g?m hai DTX-AXTLK1 Communication Modules
DTX-NSMThe DTX Network Module plugs into the back of the main unit of the DTX tester. It performs network connectivity tests, tests Power over Ethernet according
DTX-SFM2DTX Singlemode Fiber Modules Bao g?m hai module (m?t cho Main Smart Remote).module có laser light source 1310 nm and 1550 nm
DTX-OTDR-KITDTX OTDR Add-on Kit Bao g?m DTX Compact OTDR Module, launch fibers, ph? ki?n và carrying case
DTX-COAXDTX Coax Cable Test Adapter (2 adapters included)
DSP-PCI-C6JACKReplacement Cat 6 Jacks for the DSP-PCI-C6 Patch Cord Adapter, set of 10
DTX-PCU6SDTX Series UTP Cat 6 Patch Cord Adapter Set Includes: DTX Main adapter (DTX-PCU6/MN) and DTX Smart Remote adapter (DTX-PCU6/SR).
DTX-PLA002SSet of 2 Permanent Link Adapters for Cat6A and Alien Crosstalk testing. This adapter can be used for all permanent link tests Cat6A/6/5e/5 and Cat 3.
DTX-PLA002One Permanent Link Adapter for Cat 6A and Alien Cross Talk testing. This adapter can be used for all permanent link tests Cat 6A /6/5e/5 and Cat 3.
DTX-PLA002PRPDTX-PLA002 plug replacement parts. This item includes two contact blocks of the 8-pin modular plug.
DTX-TERATERA Adapter Kit - Includes TERA Channel Adapters (2) and TERA Permanent Link Adapters (2) to test Siemon TERA class F systems
DTX-PLA011One (1) TERA Permanent Link Adapter for Siemon TERA Class F and Fa Systems. Note: You will need at least one (1) DTX-CHA011 adapter as well.
DTX-CHA011TERA Channel Adapter for Siemon TERA Class F Systems
DTX-CHA002SSet of two Cat 6A/Class Ea Channel Adapters optimized for Alien Crosstalk measurements. These adapters can be used to test Cat 6A/ 6/ 5e/ 5/ 3 and Class Ea/E/D and C channels.
DTX-CHA002Cat 6A/Class Ea Channel Adapter optimized for Alien Crosstalk measurements. This adapter can be used to test Cat 6A/6/ 5e/ 5/3 and Class Ea/E/D and C channels.
DTX-CHA012Nexans GG45 Channel Adapter
DTX-PLA012Nexans GG45 Permanent Link Adapter (available July 2009)
DTX-GG45Nexans GG45 Adapter Kit (available July 2009) – Includes GG45 Channel Adapters (2) and GG45 Permanent Link Adapters (2)
DTX-AXTERMLink Terminator for Alien Crosstalk Measurements – set of 2
DTX-LIONLithium Ion Battery Pack
DTX-SERSerial RS232 Cable (IEEE 1394 to DB-9)
DSP-MCR-UMultiMedia Card (MMC) Reader, USB
LinkWareLinkWare Cable Test Management Software – Free download at www.flukenetworks.com/linkware
LinkWare-StatsLinkWare Stats Statistical Report Option – Results analysis software option for LinkWare
NFA-SCSet of two SC Adapters for DTX
NFA-LCSet of two LC Adapters for DTX-xFM2 power meter port.
NFA-STSet of two ST Adapters for DTX-xFM2 power meter port.
NFA-FCFC Test Adapters, Set of two
NFK1-DPLX-SCDuplex MM 62.5 µm TRC for SC Adapter, Set of 2
NFK1-DPLX-LCDuplex MM 62.5 µm TRC for LC Adapter, Set of 2
NFK1-DPLX-STDuplex MM 62.5 µm TRC for ST Adapter, Set of 2
NFK1-DPLX-FCDuplex MM 62.5 µm TRC for FC Adapter, Set of 2
NFK2-DPLX-SCDuplex MM 50 µm TRC for SC Adapter, Set of 2
NFK2-DPLX-LCDuplex MM 50 µm TRC for LC Adapter, Set of 2
NFK2-DPLX-STDuplex MM 50 µm TRC for ST Adapter, Set of 2
NFK2-DPLX-FCDuplex MM 50 µm TRC for FC Adapter, Set of 2
NFK3-DPLX-SCDuplex SM TRC for SC Adapter, Set of 2
NFK3-DPLX-LCDuplex SM TRC for LC Adapter, Set of 2
NFK3-DPLX-STDuplex SM TRC for ST Adapter, Set of 2
NFK3-DPLX-FCDuplex SM TRC for FC Adapter, Set of 2
NFK1-LCLC Accessory Kit, 62.5 µm multimode
NFK1-FJFiber Jack Accessory Kit, 62.5 µm multimode
NFK1-MTRJMT-RJ Accessory Kit, 62.5 µm multimode
NFK1-VF45VF-45 Accessory Kit, 62.5 µm multimode
NF-MANDREL-50Multimode Fiber Mandrel for 50/125 µm fiber with 3 mm jacket (Red)
NF-MANDREL-625Multimode Fiber Mandrel for 62.5/125 µm fiber with 3 mm jacket (Gray)
NFK2-VF45VF-45 Accessory Kit, 50 µm multimode
NFK2-MTRJMT-RJ Accessory Kit, 50 µm multimode
NFC-Kit-CaseFiber Optic Cleaning Kit
NF400Fiber Accessories Carrying Case
DTX-FIBER-CASEProtective carrying case for DTX Compact OTDR Kits
NFK1-EFLC-SCOne 62.5 µm SC/SC Encircled Flux Launch Controller (two required for DTX)
NFK1-EFLC-LCOne 62.5 µm SC/LC Encircled Flux Launch Controller (two required for DTX)
NFK2-EFLC-SCOne 50 µm SC/SC Encircled Flux Launch Controller (two required for DTX)
NFK2-EFLC-LCOne 50 µm SC/LC Encircled Flux Launch Controller (two required for DTX)
