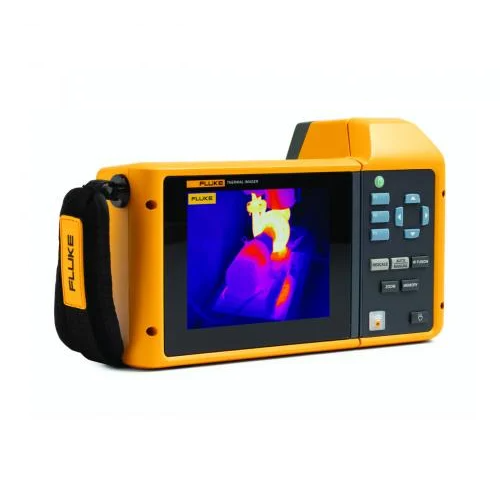

FLUKE FLK-TIX580 60HZ Infrared Camera (640 x 480px, 0.93 mRad, 8X, -20 °C ~ +1000 °C, 60 Hz)

Key features

IFOV with standard lens (spatial resolution): 0.93 mRad, D:S 1065:1

Detector resolution: 640 x 480 (307,200 pixels)

SuperResolution: Yes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image

MultiSharp™ Focus: Yes, focused near and far, throughout the field of view

LaserSharp® Auto Focus: Yes, for consistently in-focus images. Every. Single. Time.

Laser distance meter: Yes, calculates distance to the target for precisely focused images and displays distance on screen

Advanced manual focus: Yes

Touchscreen display (capacitive): 5.7 inch (14.4 cm) landscape 640 x 480 LCD

Rugged, ergonomic design: 240 ° rotatable (articulating) lens

Digital zoom: 2x, 4x, and 8x

Pre-calibrated Lenses: wide angle, 2x telephoto, 4x telephoto and 25 micron/macro

Temperature measurement

Temperature measurement range (not calibrated below -10 °C): -20 °C to 1000 °C (-4 °F to 1832 °F)

Accuracy: ±2 °C or 2% (at 25 °C nominal, whichever is greater)

Thermal sensitivity (NETD)*: ≤ 0.05 °C at 30 °C target temp (50 mK)

On-screen emissivity correction: Yes (both value and table)

On-screen reflected background temperature compensation: Yes

On-screen transmission correction: Yes

Live line marker: Yes

Wireless connectivity

To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)

Fluke Connect® app compatible: Yes, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing

Fluke Connect Assets optional software: Yes, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location.

Fluke Connect Instant Upload: Yes, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC

Fluke Connect tool compatible: Yes, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen. Five simultaneous connections supported.

Fluke Connect SmartView desktop software: Yes

IR-Fusion® technology

Adds the context of the visible details to your infrared image

AutoBlend™ mode: Continuously variable

Picture-In-Picture (PIP): 100%, 75%, 50%, 25% IR

Built-in digital camera (visible light): 5 MP

Lenses

Standard lens

IFOV (spatial resolution): 0.93 mRad, D:S 1065:1

Field of view: 34 °H x 24 °V

Minimum focus distance: 15 cm (approx. 6 in)

IR-Fusion® technology: Picture-in-picture and full screen

Optional 2x telephoto smart lens

IFOV: 0.33 mRad. D:S is 2145.1

Field of view: 12 °H x 8.5 °V

Minimum focus distance: 45 cm (approx. 18 in)

IR-Fusion® technology: Picture-in-picture and full screen

Optional wide-angle smart lens

IFOV: 1.85 mRad, D:S is 525:1

Field of view: 48 °H x 34 °V

Minimum focus distance: 15 cm (approx. 6 in)

IR-Fusion® technology: Full screen

Level and span

Smooth auto and manual scaling

Touchscreen adjustable level/span: Yes. Span and level can be easily and quickly set by simply touching the screen

Fast auto toggle between manual and auto modes: Yes

Fast auto-rescale in manual mode: Yes

Minimum span (in manual mode): 2.0 °C (3.6 °F)

Minimum span (in auto mode): 3.0 °C (5.4 °F)

Data storage and image capture

Extensive memory options: Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud for permanent storage.

Image file formats: Non-radiometric (.bmp, .jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg) files

Memory review: Thumbnail and fullscreen review

Software: Fluke Connect SmartView software - full analysis and reporting software and Fluke Connect system

Export file formats with Fluke Connect software: Bitmap (.bmp), GIF, JPEG, PNG, TIFF

Voice annotation: 60 seconds maximum recording time per image; reviewable playback on camera

IR-PhotoNotes™: Yes (5 images)

Advanced text annotation: Yes. Including standard shortcuts as well as user programmable options

Video recording: Standard and radiometric

File formats video: Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3)

Remote display viewing: Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to Fluke Connect SmartView software on a PC; via WiFi hotspot to the Fluke Connect app on a smartphone; or via HDMI to a TV monitor

Remote control operation: Yes, through Fluke Connect SmartView desktop software or Fluke Connect mobile app

Auto capture (temperature and interval): Yes

MATLAB® and LabVIEW® tool boxes: Integrate camera data, infrared video and images into these software platforms to support R&D analysis

Battery

Batteries (field-replaceable, rechargeable): Two lithium ion smart battery packs with five-segment LED display to show charge level

Battery life: 2-3 hours per battery (Actual life varies depending on settings and usage)

Battery charge time: 2.5 hours to full charge

Battery charging system: Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter

AC operation: AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)

Power saving: User selectable sleep and power off modes

Color palettes

Standard palettes: 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted

Ultra Contrast™ palettes: 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra

General specifications

Frame rate: 9 Hz versions

Laser pointer: Yes

LED light (torch): Yes

Color alarms (temperature alarms): High temperature, low temperature, and isotherms (within range)

Center-point temperature measurement: Yes

Spot temperature: Hot and cold spot markers

User-definable spot markers: 3 user-definable spot markers

Center box: Expandable-contractible measurement box with MIN-MAX-AVG temp display

Infrared spectral band: 7.5 μm to 14 μm (long wave)

Operating temperature: -10 °C to +50 °C (14 °F to 122 °F)

Storage temperature: -20 °C to +50 °C (-4 °F to 122 °F)

Relative humidity: 10% to 95% non-condensing

Safety: IEC 61010-1: Overvoltage category II, Pollution Degree 2

Electromagnetic compatibility: IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A

Australian RCM: IEC 61326-1

US FCC: CFR 47, Part 15 Subpart B

Vibration: 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6

Shock: 25 g, IEC 60068-2-29

Drop: 25 g, IEC 68-2-29/Engineered to withstand 1 meter (3.3 feet) drop with standard lens

Size (H x W x L): 27.3 x 15.9 x 9.7 cm (10.8 x 6.3 x 3.8 in)

Weight (battery included): 1.54 kg (3.4 lb)

Enclosure rating: IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)

Recommended calibration cycle: Two-years (assumes normal operation and normal aging)

Includes:

Thermal imager with standard infrared lens TiX580 60Hz

AC power supply and battery pack charger (including universal AC adapters)

Two, rugged lithium ion smart battery packs

USB cable

HDMI video cable

Bluetooth headset (where available)

Rugged, hard carrying case

Adjustable neck and hand strap

Available by free download Fluke Connect® SmartView® desktop software and users manual
