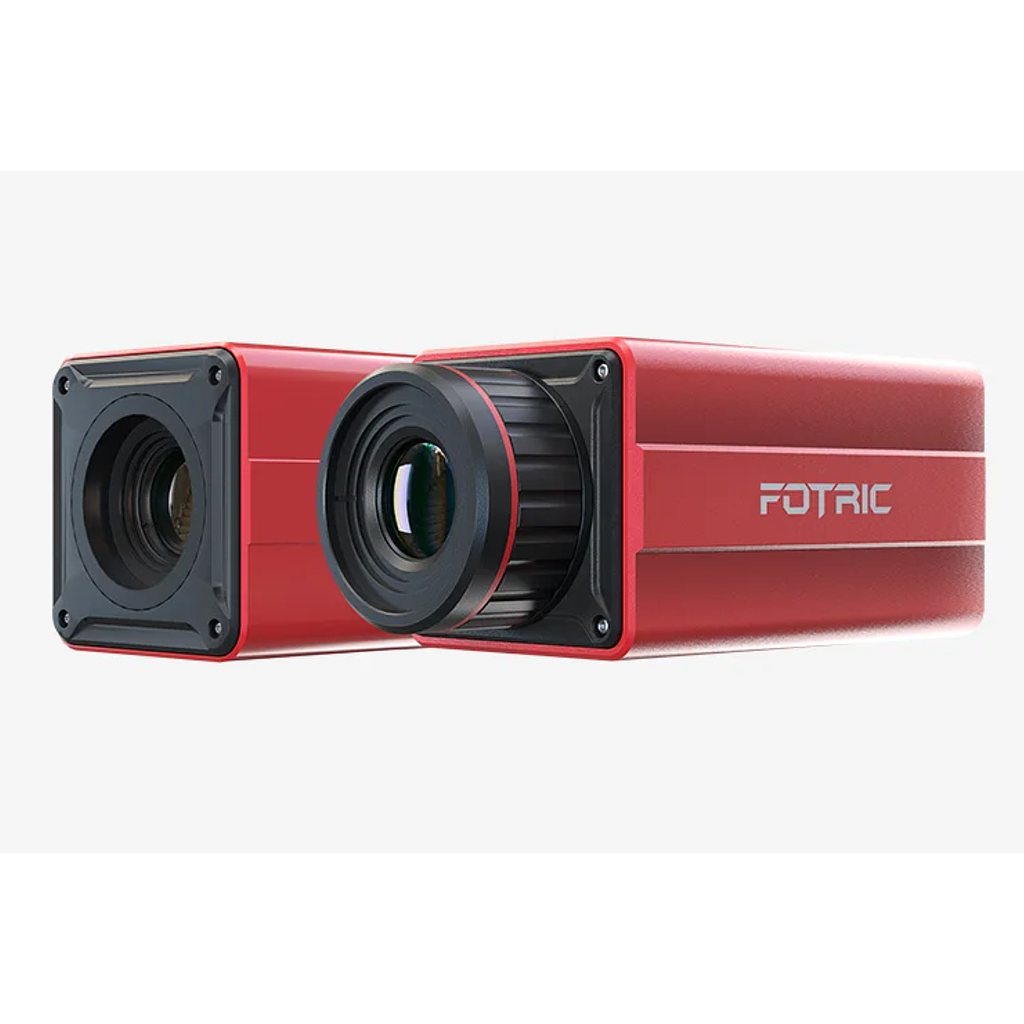

FOTRIC 615C Fixed-Mount Infrared Camera (320*240; <50mk; 7.5μm-14μm)

Thermal resolution: 320*240

Detector type: Uncooled focal plane array detector

Thermal sensitivity: ＜50mk

Detector pitch: 17μm

Spectral range: 7.5μm-14μm

FOV: Dependent on the lens configuration

IFOV: Dependent on the lens configuration

Minimum focus distance: Dependent on the lens configuration

Focal distance: Dependent on the lens configuration

Focus type: manual

Measurement Analysis

Partial emissivity: Support

Measurement parameters: Emissivity; Ambient temperature; Reflected temperature; Relative humidity; Distance; External optics compensation

Temperature range: -20℃-150℃, 0℃-350℃

Accuracy: ±2℃/±2%

Image display

Palettes: 10 standard palettes and 10 inverted palettes

Mirror mode: Left-right, up-down, center

Video compression: H.264

Radiometric stream: ＜50mk

Measurement tools: 5 points, 10 lines and 10 regions, support Modbus output

Software: AnalyzIR; Open API FOTRIC SDK

Network Connection

Ethernet type: 10M/100M/1000M adaptive

Network protocols: IPv4, UDP, TCP, RTSP, RTCP, RTP

Simultaneous stream: Mainstream and substream: 10; Radiometric stream: 1

IP connection interface: ONVIF

Electrical connection

Power connector: Screw-on wire terminal

Network connector: Screw-on RJ45 with status indicator LED

Alarm input/output: 1 relay output, load capacity: 24V, 1.5A; 1 optocoupler output: Voltage: 3.3-24V，Max current: 35mA; 1 optocoupler input: Voltage: 3.3-24V, Input current: 5mA-15mA

Serial port: RS-485

Power system

Power supply: 12V/24V DC, PoE

Power consumption: 3W

Working temperature: -20℃-65℃

Storage temperature: -40℃-70℃

Relative humidity: <90%

Size(mm): 112*68*60 (without lens)

Weight (g): 485 (without lens or base)

Optional lenses

Standard lens: 25°x18°, 1.36mrad, 0.3m, 13mm

Wide-angle lens: 39°x29°, 2.14mrad, 0.3m, 8mm

Telephoto lens: 13°x9°, 0.68mrad, 2m, 25mm

Super wide-angle lens: 76°x59°, 4.14mrad, 0.3m, 3.7mm
