ELECTRICAL
Utility Input: 480 VAC Wye, 3-phase, L1, L2, L3 Neutral
Utility Connections: Up to 5 parallel runs (L1, L2, L3, N); 1/2" diameter, 13/4" NEMA bolt spacing for compression lug
Current Transformer: Ring type
Meter Socket: 13 - 15 jaw ring type with test switch plate
Bus Capacity: 2000 A
Main Service Circuit Breaker: 480 VAC Wye connected, 3-phase, electronic adjustable trip unit: 1600 A frame (600 A - 1600 A)
Main Service Current Rating (SCCR): 65 kA
Ground Fault Detection: Main service breaker
Surge Protection Device (SPD): Type 1/2, UL 1449
Arc Energy Reduction: NEC 240.87 Compliant Maintenance Mode
Number of 480 V Branch Breakers: Up to 4 electronic adjustable trip unit: 400 A frame (150 A - 400 A) OR 600 A frame (250 A - 600 A)
Output Connection:
L1, L2, L3: up to 2 parallel runs 2/0-600 kcmil (AL/CU, 75 deg C, mechanical lug)
Neutral: 1/2" diameter, 13/4" NEMA bolt spacing for compression lug
Ground: 6AWG-350 kcmil (AL/CU, 90 deg C, mechanical lug)
UPS: Maintenance free uninterruptible capacitive power supply (cULus Listed, UL 508)
Technician-Ready GFCI Outlet: 1 (15 A Max)
PHYSICAL, ENVIRONMENT, COMPLIANCE, & SAFETY

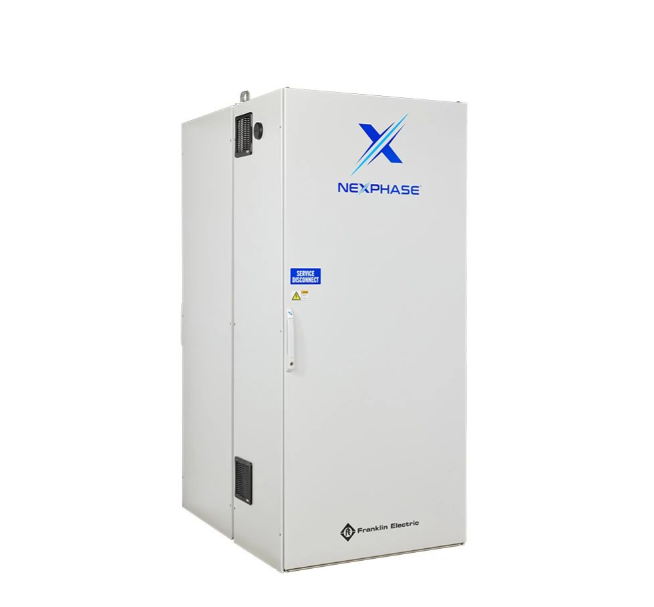

Dimensions / Weight: 39 1/2" Width x 55 1/2" Depth x 87" Height / 1,750 pounds (794 kg)
Enclosure: NEMA 3R indoor/outdoor electrical cabinet
Electrical Code: Designed for NFPA70; NEC2020
Certifications / Approvals: UL Listed, UL891 (suitable for use as service equipment)
EUSERC: Meets drawings 322, 325, 332, 345, 347, 354
MONITORING / CONTROL
Power Quality Monitoring: Current, Voltage, Power factor, Apparent power, Active power, Reactive power, Accumulated apparent energy, Accumulated active energy, Accumulated reactive energy
Transaction Data: Energy Consumption, Charger power state, Charger duration, Max average power, Daily/weekly usage, Accumulated energy per post
Available Sensor Inputs: Tilt (qty 4), water, hydrocarbon, emergency stop
Breaker Status: Open / closed / trip
Remote Control: Open / close each EV charger breaker via motor operators
SOFTWARE INTERFACE
Remote Connectivity: Ethernet, Cellular Modem
Cloud Based Data Acquisition: MQTTS Protocol
User Interface: UNITE™ web-based, remote user interface (included - no subscription required)
API Data Integration: Available upon request for integration with existing business software platforms
