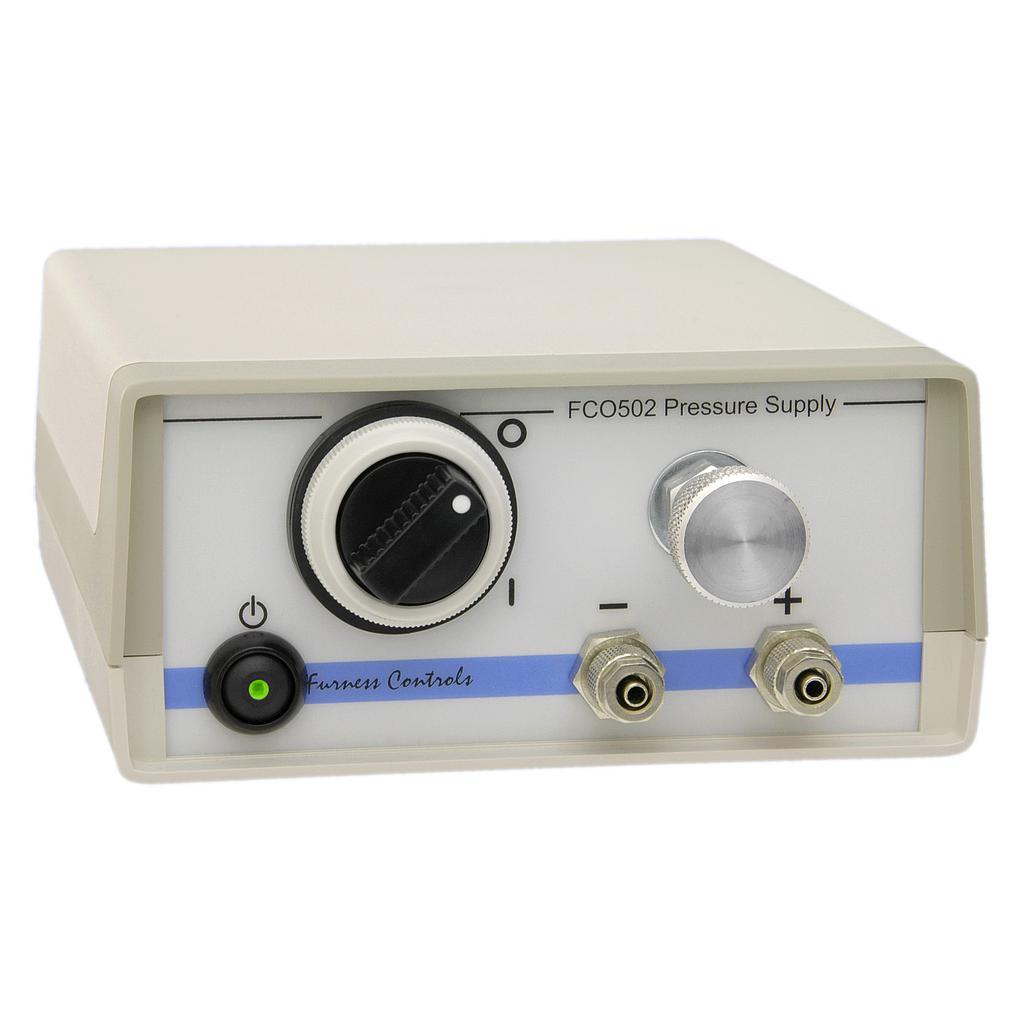

Furness Controls FCO502 Pressure Generator (2 kPa (10 Pa-2 kPa); 20 kPa (100 Pa-20kPa))

Features:

- Models / Ranges:

Model 1: 2 kPa (10 Pa to 2 kPa)

Model 2: 20 kPa (100 Pa to 20 kPa)

- Stability: ±0.15% (0.5% to 100% of Range)

- Pneumatic Ports: 6 mm OD x 4 mm ID Push-on with Lock Nut

- Supply Voltage: 12 VDC (Universal input PSU Supplied with Instrument)

- Power Rating: 2.4 VA

Performance:

- Working Temperature: 5°C to 45°C

- Storage Temperature: -20°C to 70°C

- Working Medium: Ambient Atmospheric Air

- Humidity: 30% to 80% non-condensing

- Static Pressure:

Model 1: typically 1 kPa

Model 2: typically 4 kPa

Construction:

Enclosure: ABS

Dimensions: 148 mm x 71 mm x 210 mm

Weight: 1.2 kg
