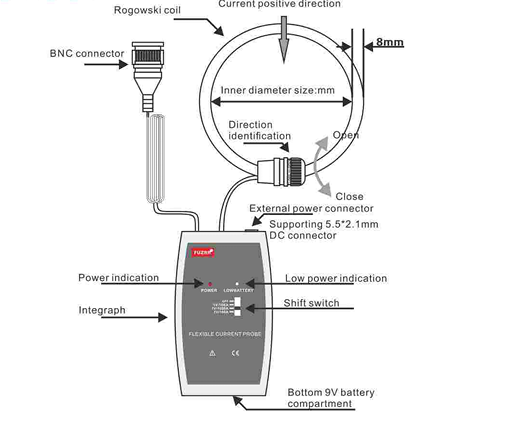

FUZRR FR100RD Rogowski Coil Sensor (AC:3V/100A; AC:3V/1000A; AC:3V/10kA)

Coil Length: 315mm

Coil Inside Dia. φ100mm

Coil weight: about 230g

Output Signal:

AC:3V/100A

AC:3V/1000A

AC:3V/10kA

Coil Color: Blue

Battery 9V: Dry battery 9

External Power Supply: External power 8-12V

Power Consumption: 6mA

Function: AC leakage current, high current, high harmonic current, complex waveform current, transient impulse current phase, electric power, power, power factor, etc.

Coil Line Dia.: 8mm

Output: only coil output : 100mV/1000A

Power Supply Voltage :Corresponding Integrator power supply voltage

Low Current Indication: have

Accuracy Level: ±1.0% FS

Phase Error: ≤1°(50Hz/60Hz ; 23°C±2°C)

Response Frequency without integrator: 0.1Hz - 10MHz

Line Voltage: circuit test belowAC 1000V
