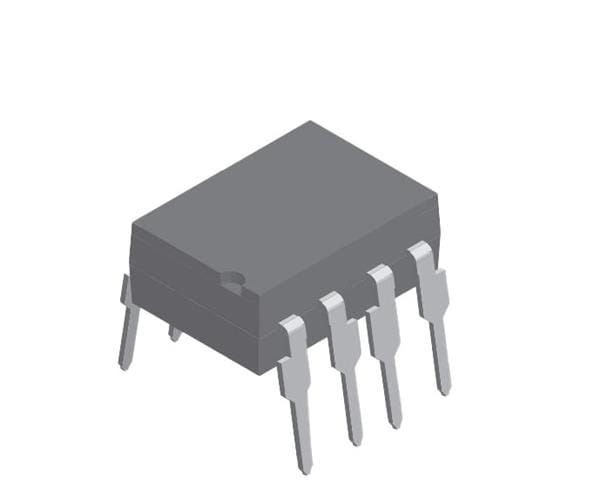

Vishay General Semiconductor ILD615-3X017T Transistor Output Optocouplers Phototrnstr Dual Ch 100-200% CTR VDE
Manufacturer: Vishay General Semiconductor Model: ILD615-3X017T - Contact
Width: 6.81 mm
Height: 3.81 mm
Length: 9.91 mm
Fall Time: 14 us
Rise Time: 2.8 us
Output Type: NPN Phototransistor
Unit Weight: 2.580 g
Configuration: 2 Channel
Mounting Style: SMD/SMT
Isolation Voltage: 4420 Vrms
Number of Channels: 2 Channel
If - Forward Current: 60 mA
Vf - Forward Voltage: 1.3 V
Vr - Reverse Voltage: 6 V
Current Transfer Ratio: 100 %
Pd - Power Dissipation: 400 mW
Maximum Collector Current: 50 mA
Current Transfer Ratio - Max: 200 %
Current Transfer Ratio - Min: 100 %
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 55 C
Maximum Collector Emitter Voltage: 70 V
Maximum Collector Emitter Saturation Voltage: 400 mV
