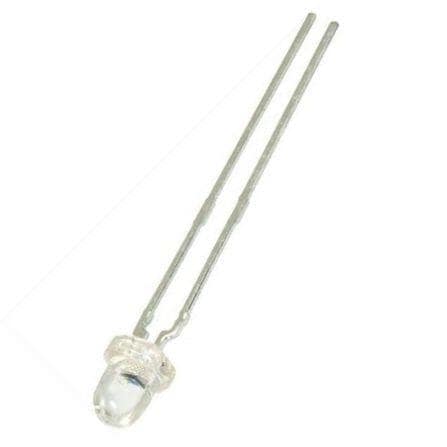

Vishay General Semiconductor TEFD4300 Silicon PIN Photodiode T-1 350 to 1120nm +/-20 deg
Manufacturer: Vishay General Semiconductor Model: TEFD4300 - Contact
Width: 3 mm
Height: 4.5 mm
Length: 3.2 mm
Fall Time: 100 ns
Rise Time: 100 ns
Unit Weight: 2 g
Dark Current: 150 pA
Photocurrent: 17 uA
Mounting Style: Through Hole
Peak Wavelength: 950 nm
If - Forward Current: 50 mA
Vf - Forward Voltage: 1 V
Vr - Reverse Voltage: 60 V
Pd - Power Dissipation: 215 mW
Half Intensity Angle Degrees: 20 deg
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
