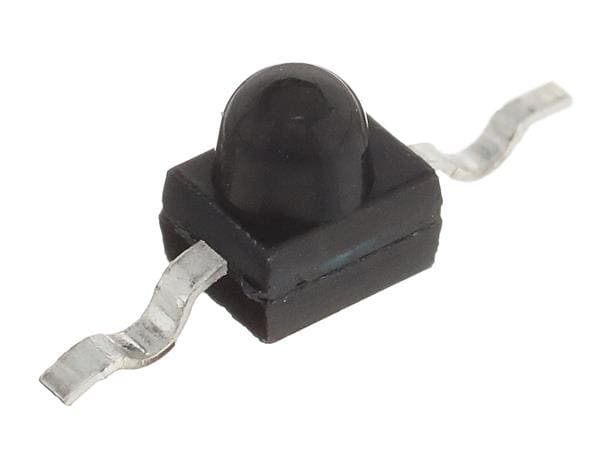

Vishay General Semiconductor TEMT1030 IR Chip Yoke 730 to 1000nm +/-15 deg
Manufacturer: Vishay General Semiconductor Model: TEMT1030 - Contact
Width: 2 mm
Height: 2.7 mm
Length: 2.5 mm
Fall Time: 2.3 us
Rise Time: 2 us
Wavelength: 880 nm
Dark Current: 200 nA
Light Current: 7 mA
Mounting Style: SMD/SMT
Peak Wavelength: 950 nm
Lens Color/Style: Black
Moisture Sensitive: Yes
Pd - Power Dissipation: 100 mW
Half Intensity Angle Degrees: 15 deg
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Maximum On-State Collector Current: 100 mA
Collector- Emitter Voltage VCEO Max: 70 V
Collector-Emitter Breakdown Voltage: 70 V
Collector-Emitter Saturation Voltage: 300 mV
