Flow Rate: 60mL/min
Min. Sample: 5mL
Max. Pressure: 45,000psi
Dimensions(cm): 70 × 36 × 30
Weight: 35 kg (75 lbs)
Max. Temp.: 80ºC (176ºF)
Power: 110V/220V
Cleaning: Flush to clean
Application: Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, deagglomeration
Features: Digital display of pressure or pressure gauge
Standard features
Parts: Y-type diamond interaction chamber with cooling option
Control System: High pressure programming control systems: touch screen, speed control, auto stop control by volume, time, pressure or temperature, settable volume control as low as 1mL, display of flow rate and time, overload protection
Pressure Gauge: Digital display on the touch screen
Inlet Type: 1/4" HP coupling
Outlet Type: 1/4" HP coupling
Inlet Reservoir: 20mL syringe
Outlet Reservoir: 20mL syringe
Product Material: 316L stainless steel, tungsten carbide, viton, teflon
Material Standard: Sanitary grade, FDA, GMP

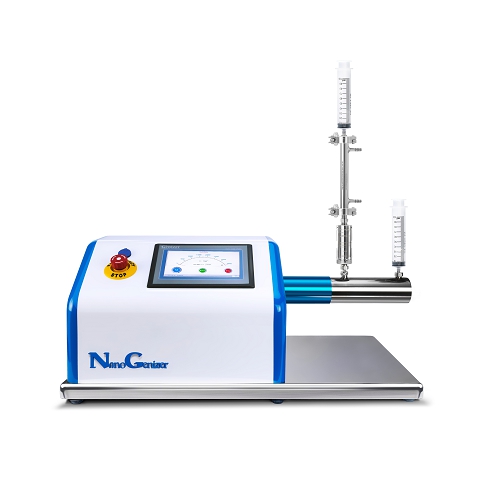

NanoGenizer High Pressure Homogenizer:
NanoGenizer is a laboratory high pressure processing device. It is an electrically-driven and bench-top, high pressure homogenizer requiring no compressed air or hydraulic oil to achieve maximum 3,062 bar (45,000 psi) operating pressure.
NanoGenizer high pressure homogenizer is composed of a feed reservoir, high pressure pump, transducer, PLC control panel and microfluidics diamond interaction chamber. The sanitary pump system of the NanoGenizer high pressure homogenizer is able to supply the desired pressure to the product stream and push it through the micron chamber (microreactor) to create high shear rates and strong impact within the stream. This process results in uniform particle distribution and smaller particle sizes.
Application of NanoGenizer High Pressure Homogenizer:
Cell disruption and particle size reduction
Nanoemulsions
Nano dispersions
Liposomes
Deagglomeration
Performance of NanoGenizer High Pressure Homogenizer:
Energy efficient, 1/2 energy loss of the most homogenizers
Small (integrated design delivers the light weight and small dimensions)
Smart (programming control systems confer diligent functions: controlled inlet volume ± 0.1mL; auto stop with time/volume)
Silent (noiseless performance)
Strong (more than 150 mL/min at 30,000 psi)
CE compliant and RoHS compliant
