Flow Rate: 30L/hr
Min. Sample: 100mL
Max. Pressure: 30,000psi
Dimensions(cm): 165 × 90 × 65
Weight(kg): 320
Max. Temp.: 80ºC (176ºF)
Power: 380V/440V
Cleaning: Flush to clean/CIP/SIP
Application: Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, deagglomeration
Features: Dual pump for continuous pressure, digital display of pressure
Standard Features
Parts: Y-type diamond interaction chamber with cooling option
Control System: High pressure programming control systems: touch screen, speed control, auto stop control by volume, time, pressure or temperature, settable volume control as low as 100mL, display of flow rate and time, overload protection
Pressure Gauge: Electric
Inlet Type: Tri-clamp or luer
Outlet Type: Tri-clamp or luer
Inlet Reservoir: 2L SUS316 cylinder
Product Material: 316L stainless steel, tungsten carbide, viton, teflon
Material Standard: Sanitary grade, FDA, GMP

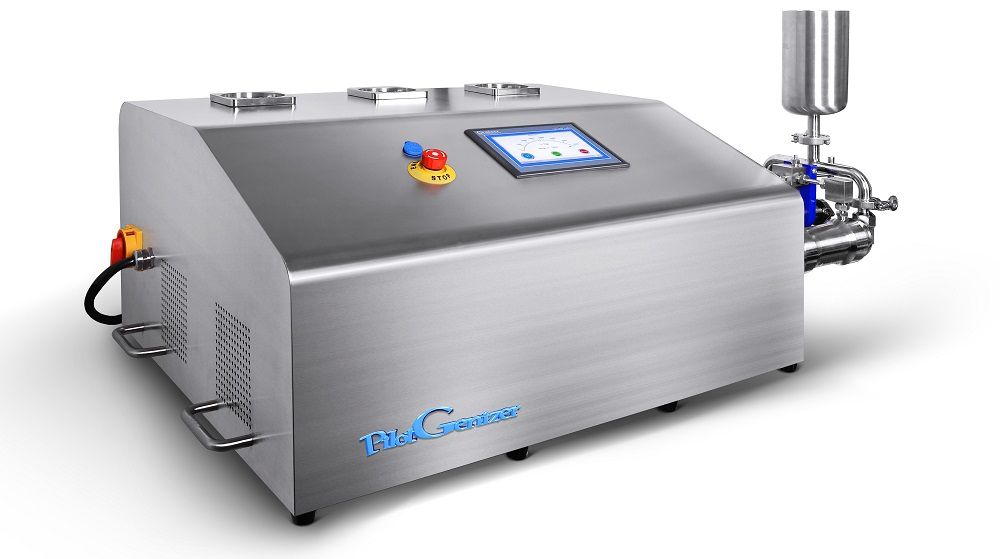

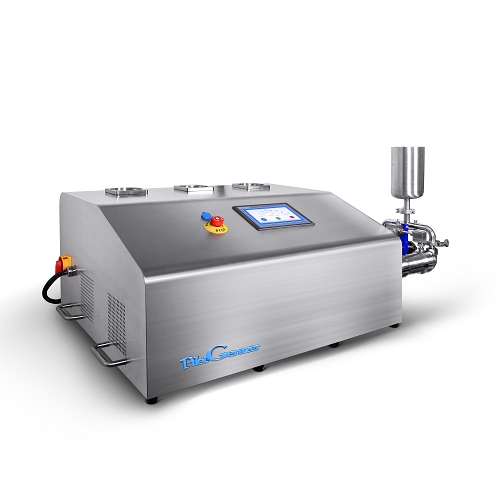

The PilotGenizer is a pilot-scale ultra-high-pressure homogenizer and cell disruptor from Genizer LLC. It is electric-driven and gives formulation development experts more alternatives and capacities for cell disruption, emulsification and particle size reduction quickly and easily.
The PilotGenizer dual pumps system is based on a digital control design and is simple to use, with an auxiliary diamond chamber that helps pre-mix the sample and aids the nano-sizing procedure, as well as a primary diamond interaction chamber that disrupts the cell and reduces particle size. In the sample cooling unit, a 316 L stainless heat exchanger is employed to help cool the samples.
In addition, the Genizer PLC touch screen provides operators with multi-advanced features, such as auto-stop configuration (cycle numbers, set time and pressure) and precision sampling. 316 L stainless steel, 17-4 PH stainless steel, titanium alloy, tungsten carbide, PTFE, UHMWPE, or other corrosion-resistant materials are used on any parts that come into contact with the medium.
Main Features of the NanoGenizer:
l Diamond interaction chamber technology
l Flow rate: ~30 L/H at 30, 000 psi (water value)
l Pressure: 15,000 psi - 45,000 psi
l Sanitary dual pumps system
l Control system: PLC touch screen, digital pressure value, auto-stop configurationMinimum
l Application: Nano emulsions, liposomes, fat emulsions, nano dispersion, cell disruption, deagglomeration, graphene, and carbon nanotub
Technical Data:
Catalog No. | ||||||||||
Flow Rate | 60L/hr | 45L/hr | 35L/hr | 30L/hr | 20L/hr | |||||
Min. Sample Size | 200mL | 100mL | 100mL | 100mL | 100mL | |||||
Max. Pressure | 15,000psi | 20,000psi | 25,000psi | 30,000psi | 45,000psi | |||||
Dimensions | ~145×75×50 cm | |||||||||
Weight | ~260-320 kg | |||||||||
Max. Temp. | 80ºC (176ºF) | |||||||||
Power | 380V/440V | |||||||||
Cleaning | Flush to clean/CIP/SIP | |||||||||
Application | Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, deagglomeration | |||||||||
Features | Dual pumps for continuous pressure, digital display of pressure | |||||||||
Datasheet
