Flow Rate: 30L/hr
Min. Sample: 25mL
Max. Pressure: 25,000psi
Dimensions(cm): 150 × 68 × 48
Weight: ~260 kg (573 lbs)
Max. Temp.: 70°C (158°F)
Power: 380V
Cleaning: Flush to clean
Application: Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, de-agglomeration, nanoparticle, graphene
Features: Digital display of pressure or pressure gauge
Standard features
Parts: Ultra Y-type diamond interaction chamber with cooling option
Control System: High pressure programming control systems: touch screen, speed control, auto stop control by volume, time, pressure or temperature, settable volume control as low as 1mL, display of flow rate and time, overload protection
Pressure Gauge: Digital display on the touch screen
Inlet Type: 3/8" HP coupling
Outlet Type: 3/8" HP coupling
Inlet Reservoir: 100mL syringe
Outlet Reservoir: 100mL syringe
Product Material: 316L stainless steel, tungsten carbide, viton, teflon
Material Standard: Sanitary grade, FDA, GMP

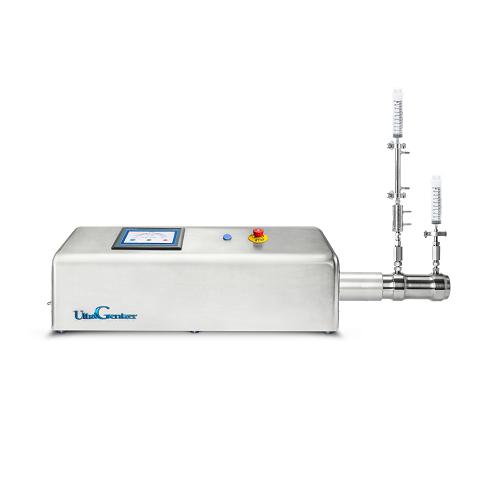

UltraGenizer High Shear Homogenizer:
UltraGenizer is a laboratory ultra high pressure processing device. It is an electrically-driven and bench-top high shear homogenizer, which requires no compressed air or hydraulic oil to achieve maximum 4,200 bar (60,000 psi) operating pressure.
Application of UltraGenizer High Shear Homogenizer:
Nano emulsions
Nano dispersions
Liposomes
Nanoparticles
Graphene
Deagglomeration
Performance of UltraGenizer High Shear Homogenizer:
Energy efficient, 1/2 energy loss of the most homogenizers
Small (integrated design delivers the light weight and small dimensions)
Smart (programming control systems confer diligent functions: controlled inlet volume ± 0.1mL; auto stop with time/volume)
Silent (noiseless performance)
Strong (more than 150 mL/min at 60,000 psi)
CE compliant and RoHS compliant
