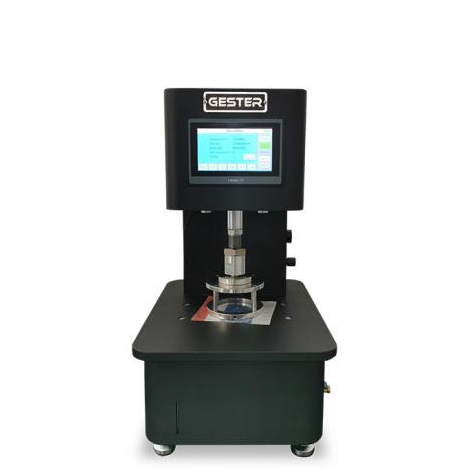

GESTER CT-C26A Protective Clothing Tester Hydrostatic Head Testing Machine (500pa-200kpa)

Used to test the waterproof properties of fabrics through waterproofing work such as canvas, coated fabrics, hood fabric, tarpaulin, rain-proof fabrics and geotextile, protective clothing.

Testing range: 500pa-200kpa

Water pressure increase rate: 1kpa-30kpa

Accuracy: 0.2%F.S

Clamping method: Pneumatic clamping

Specimen test area: 100cm2, or 7.8cm2  (Option)

Testing mode: Supercharge method, leaking method (set the pressure and time)

Testing unit: pa , mmHg , cmH2O

Power supply: AC 220V 50/60HZ

Dimension: 600 x 450 x 640mm (L x W x H)

Weight: 60 kg
