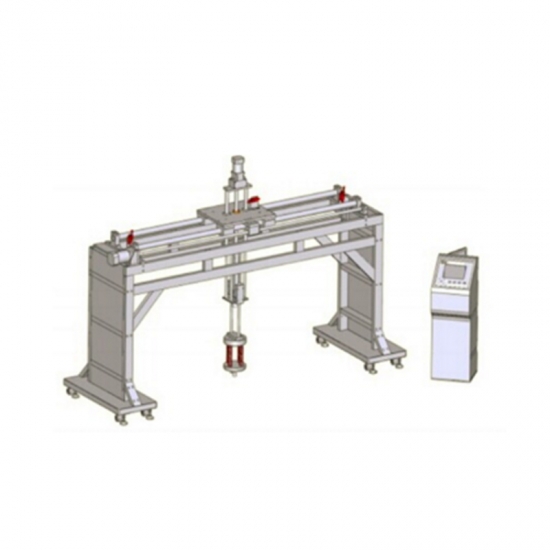

This machine is the newest design bed and mattress comprehensive performance tester according to EN 1725 standard.
Controller: PLC Touching Screen Control
Motor: Panasonic
Number of loading cylinders: Double
Load sensors: 5000N, American Celtron
Durability test:
Test load: 1000N
Loading pad diameter: ⊄200mm
Spherical radius: R300mm
Edge radius: R12mm
Test cycle: 1000 cycles/per point
Load maintain time: 3±1s
Vertical impact test:
Impactor surface diameter: ⊄200mm
Impactor surface spherical radius: R300mm
Impactor surface edge radius: R12mm
Impactor total mass: 25+0.1kg
Impactor spring rate: 6.9±1 N/mm
Impact height: 180mm
Bed edge durability:
Test load: 1000N
Test cycles: 5000cycles
Maintain time: 3±1s;
Vertical static load:
Test load: 1400N
Loading pad diameter: ⊄200mm
Spherical radius: R300mm
Edge radius: R12mm
Test cycle: 10cycles/per point
Load maintain time 10±1s
Bed edge Vertical static load test:
Small Loading pad diameter: ⊄100mm
Edge radius: R12mm
Test Load: 1200N
Load maintain time: 1min
Power supply: 1φ,AC,220V 50/60Hz
Dimension (LxWxH): 2.6*2.4*1.8m
Weight (kg): ≈900kg
Standard accessories:
Loading pad: 1 set
Impactor:1 set
Edge loading pad: 1 set
Small loading pad: 2 set
