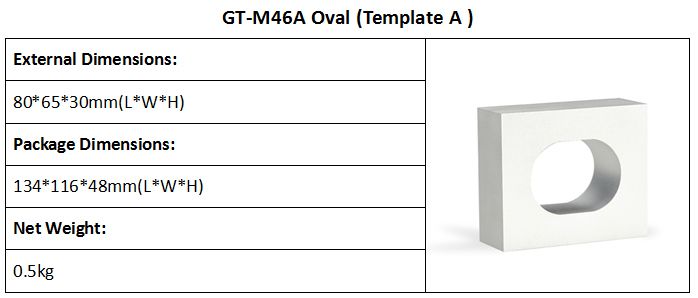

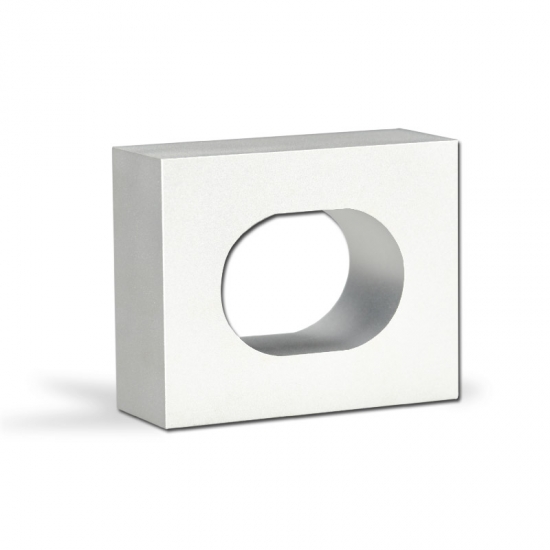

GESTER GT-M46A Rattle Test Template (oval)
Manufacturer: GESTER Model: GT-M46A - Contact
Inside hole radius/ Inner Diameter(mm): 17.5+0/-0.05
Width(mm): 65±2
Inside Hole Width(mm): 35mm
Inside Hole length(mm): 50+0/-0.1
Length(mm): 80±2
Thickness(mm): 30+0.1/-0
Material: Aluminum metal alloy, surface oxidation
Standards: EN-71-1 section 8.16, ASTM F963 section 4.22.1, 4.23, 4.24, 16CFR 1510, ISO 8124-1section 5.3, GB6675-2 section 5.3
Weight: 500g
