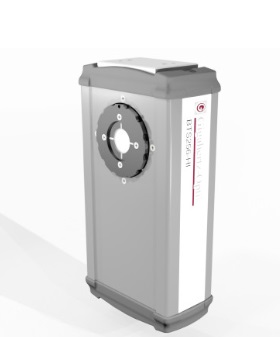

Gigahertz-Optik BTS256-HI Compact BiTec Spectroradiometer (360 - 830 nm, 1700 - 17000 K)

-Typical applications: Light meter for the luminous flux, spectral radiant power and luminous color

-Calibration uncertainty:

±4% for luminous flux

±5% for radiant power

-Sensor:

Bi-Technology sensor with a photometric broadband detector and a array spectrometer. Integrated aperture for automatic dark signal adjustment.

-Input optics:

Integrating sphere with synthetic ODM98 coating behind entrance window. 15 mm diameter measurement port.

-Microprocessor: 16 bit, 25 ns instruction cycle time

-Power Supply: 5 VDC to 7 VDC, 250 mA peak during capacitor charging of the auxiliary lamp

-Interface: USB 2.0 (Type B USB port)

-Temperature range:

Operation: 10°C to 30°C

Storage: -10°C to 50°C

-Dimensions: 160 mm x 85 mm x 60 mm (Length x Width x Height)

-Weight: 500g
