-Measurement range: 1.2 lm to 120,000 lm, 360 nm to 830 nm
-Typical applications: Inspection of incoming products (LED lamps), quality assurance in production processes, design
-Calibration: Factory calibration. Traceable to international standards
-Calibration uncertainty: Luminous flux calibration ±5%
-Input optic - ISD-50HF-V01

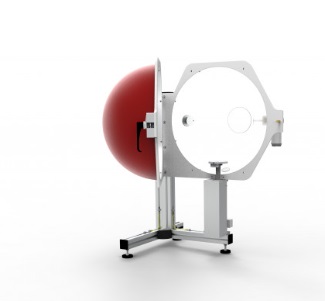

Integrating sphere with barium sulfate coating. 500mm internal diameter. An openable hemisphere. UMSH-AP-500 height-adjustable sample holder. Baffle between the detector and the sphere center as well as the detector for lamps with an extent of up to 100 mm. 12V/50W Halogen auxiliary lamp. Table stand.
-Typical measurement time:
BTS256-LED: max. 1000 lm ≤ 5 ms (white light)
BTS256-LED: min. 10 mlm ≤ 30 s (white light)
BTS256-LED with ISD-50HF-V01: max. 120000 lm ≤ 5 ms (white light)
BTS256-LED with ISD-50HF-V01: min. 1.2 lm ≤ 30s (white light)
-max. luminous flux:
BTS256-LED typ. 70000 lm
BTS256-LED with ISD-50 typ. 8000 klm
-Noise equivalent luminous flux:
BTS256-LED Tester typ. 0.05 mlm
BTS256-LED Tester with ISD-50-V01 typ. 10 mlm
