-Measurement range:
Luminance: OD0: 120000 cd/m², OD1: 12000 cd/m², OD2: 1200 cd/m² (at CCT 2960K with LH-100F-UV)
Luminance: OD0: 75000 cd/m², OD1: 7500 cd/m², OD2: 750 cd/m² (at CCT 2856K with LH-100F-UV)
Fine adjustable intensity with variable aperture in each intensity step
-Typical applications: Uniform light source for pixel uniformity calibration and adjustment. Intensity control in three steps (OD0, OD1, OD2) by exchangeable neutral densnity attenuation filters. Fine adjustable intensity in each step by aditional variable aperture.
-Calibration: Luminance at 100 % intensity. Optional calibration of the spectral radiance (380 nm to 1100 nm). Calibration certificate with description of the calibration procedure, reference standards applied, traceability and calibration uncertainty.
-Calibration uncertainty:
luminance (cd/m²): ±3.5% u(k=2)
color temperature [K]: ±2% u(k=2)
-Light Output Port: 19 mm
-Lamp Connection: Two Banana type plugs

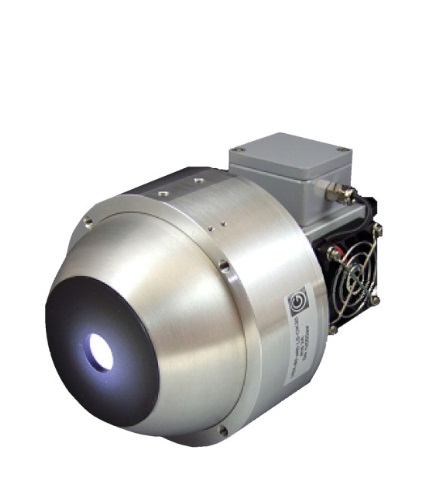

-Specifications: 80 mm ODM sphere with 19 mm light entrance port
