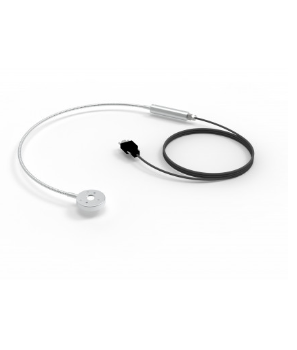

Measurement ranges: Spectral responsivity 240 nm to 320 nm. Linear measuring range from 0.1 mW / cm² to 40,000 mW / cm² with measuring device X1-1
Input optics: 9 mm, diffuser
Dimensions:
Measurement head: Height: 8 mm / Diameter: 37 mm
Detector element: Length: 65 mm / Diameter: 15 mm
Light Guide: Flexible: 50 cm / 20 inch
Typical responsivity: H-Type 240 nm - 320 nm: 0.7 nA/(mW/cm²)
max. Irradiance: 40 W/cm²
Max. signal current: 50 µA
Temperature range: up to + 100 °C (short-term)
Humidity: <80%, non-condensing
Cable Length: 50 cm
Connector: -1
