Gigahertz-Optik UPK-50-F Integrating sphere (50 mm) | EMIN.COM.MM

Integrating Sphere Test System
Gigahertz-Optik UPK-50-F Integrating sphere (50 mm)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

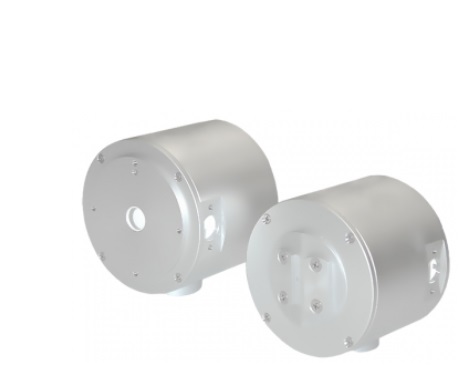

Product image

Gigahertz-Optik UPK-50-F Integrating sphere (50 mm)

ManufacturerGigahertz-Optik(View more products from this manufacturer)

ModelUPK-50-F

P/N15296144

OriginGermany

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

-Measurement range:

Sphere Diameter: 50 mm

Measurement port: One. 10 mm diameter

Baffle: Yes. Collar type

Application ports: Two in +/- 8° orientation to the measurement port. With port plugs.

Detector port: One. 11 mm Diameter. Optional two more

Coating: ODM98

-Typical applications: Integrating sphere for the configuration for reflection measurements.

-Calibration: depends on configuration

-Coating: ODM98

-Sphere diameter: 50 mm

-Measurement Port Diameter: 10 mm. Supplied with ODM98 coated plugs.

-Detector port:

1 x UP-DP-11 (PD-11, TD-11, VL-11, UFC-11)

up to three more UP-DP-11 in +/-90° position can optional supplied

-Mounting: M6 and 1/4” threaded holes

Datasheet

Drawing
