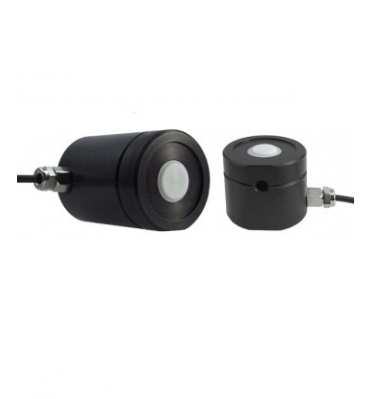

Gigahertz-Optik UV-3716-2 High Sensitivity Broadband UV Irradiance Detector (Calibration data connector)
Manufacturer: Gigahertz-Optik Model: UV-3716-2 P/N: 15297123 Origin: Germany - Contact
Spectral responsivity: UV-A 305-400 nm
Typical responsivity: 10 nA/(W/m²)
Max. signal current: 100 µA
Input optics: 11 mm Ø diffusor window
Input optics: Cosine F.O.V
Housing: 37 mm Ø, 32 mm height
Mounting: side M6 thread hole
Connector: coaxial cable 2 m Long, with calibration data connector (UV-3716-2)
Temperature range: 5 - 40°C
min. signal current: depends on optometer
