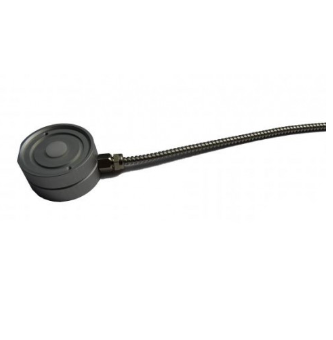

Gigahertz-Optik UV-3725-5 High Sensitivity Broadband UV Irradiance Detector (ITT connector)
Manufacturer: Gigahertz-Optik Model: UV-3725-5 P/N: 15312097 Origin: Germany - Contact
Spectral responsivity: UV-C 254 nm
Typical responsivity: UVC @254nm radiometric: 5E-5 A/(W/cm²)
Max. signal current: 50 µA
Input optics: 8 mm Ø diffusor window, f2 ≤ 3%
Housing: 37 mm Ø, 21 mm height
Connector: coaxial cable 2 m Long, with ITT connector (UV-3725-5)
Temperature range: 5 - 40°C
+ temperature coefficient: -0.0595 %/K
min. signal current: depends on optometer
