SMS-RC System
Target measured object: all rotatiing machinery, Ballscrew, Gear box, Linear guideway
Channels: 1
Sampling rate: 20k Hz/s
Diagnostic display:
ISO norm (ISO10816 / ISO2372 / ISO20816) criticality levels
ISO 1940 Dynamic G levels
FFT (steady & unsteady signal), Time waveform
Vibration value (AVG/MAX/Real Time)
Filter feature:
ISO10816 / ISO2372 / ISO20816 Bandpass filter (10 ~ 2k Hz)
FFT Bandpass filter (1 ~ 10k Hz)
Vibration meter Low-pass filter / High-pass filter (1 ~ 10k Hz)
Display units:
Acceleration: g, m/s2
Velocity: um/s, mm/s, in/s, m/s
Displacement: mm, mil
Frequency: Hz, RPM
Data export: All measurements in CSV format / in JPG (screenshoot)
SMS-RC Vibration Kit
USB DAQ:
ADC resolution: 16 Bit
IEPE: 2mA/24V
Input range: ± 5
Accelerometer:
Sensitivity (±10%): 100 mV/g
Measurment range: ±50 g
Frequency range (±3 dB): 0.5 ~ 1000Hz
Temperature range: -54 ~ +121°C (-65.2 ~ +249.8°F)
Weight: 51 gm
Housing material: Stainless Steel
Electical connector: 2-Pin MIL-C-5015
Cable:
Connector: MIL-C-5015 compatible to BNC
Length: 2m

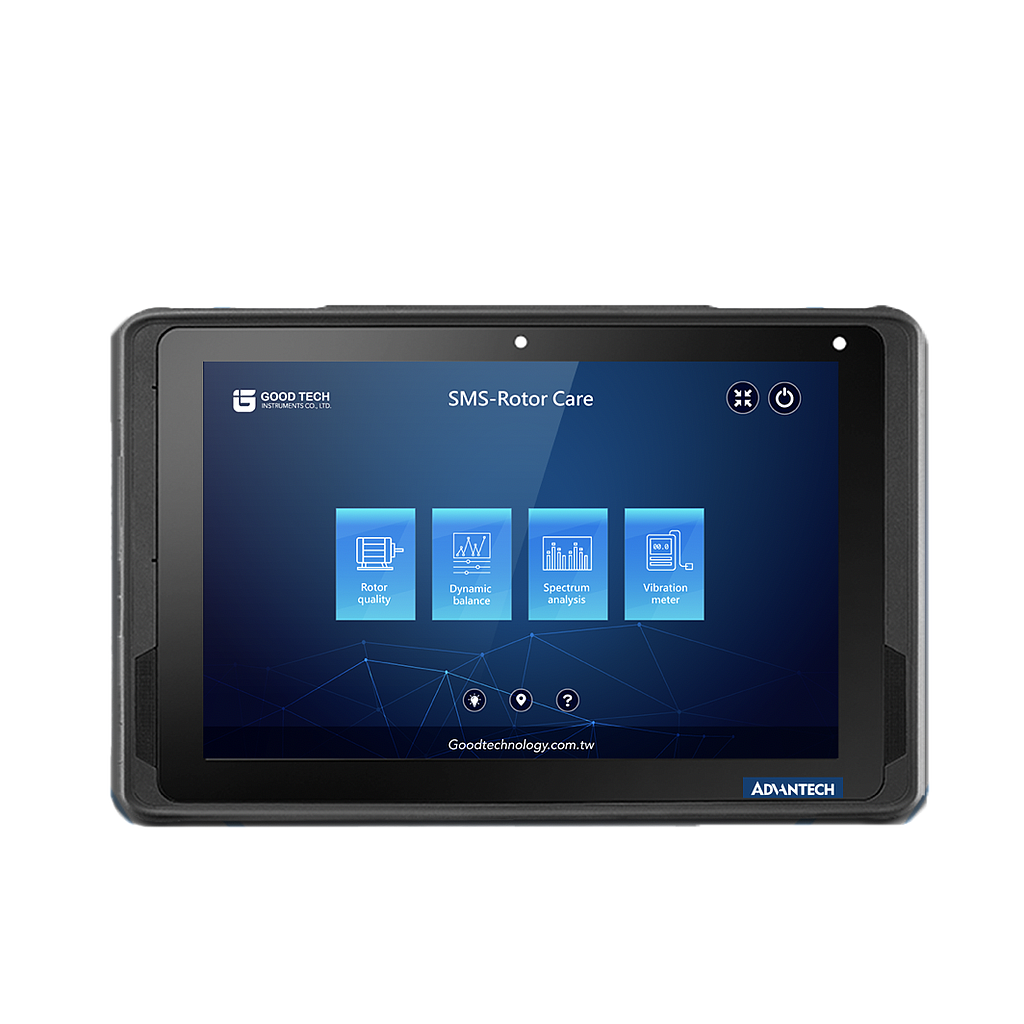

10.1" Industrial Tablet (Option)
Operating system: Windows 10 IOT Enterprise
Processor: Intel Atom x7-Z8750 quad-core, 1.6 GHz (2M cache, up to 2.56 GHz)
Memory: 4GB LPDDR3
Storage: eMMC 64GB, Micro-SD support (upto 128GB)
Display: 10.1" FHD LCD WUXGA 1200x1200
Baterry:
Hot-swappable battery with capacity LED indicators; 10.8V, 2400 mAh, 26 WHr
Operating time: 4 ~ 6 Hr (depending on usage scenario)
Charging time: < 3hr
Standard I/O: 1 x Micro HDMI, 1 x USB 3.0, 1 x combo audio jack, 1 x 19 VDC-in jack, 1 x SIM card reader, 1 x micro SD card reader
IP rating: IP 65
Operating temperature: -10 ~ 50°C (14 ~ 122°F)
Humidity: 10 ~ 90% @ 40°C (104°F) non-condensing
Dimensions (W x D x H): 80 x 18.3 x 180.1mm (11 x 0.7 x 7.1 in)
Weight: 980 g/2.16 lb
Certifications: FCC, PTCRB, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC, BIS
Includes:
SMS-RC SW license *1
Accelerometer sensor *1
Accelerometer Magnetic base *1
Accelerometer cable *1
USB DAQ cable *1
Probe *1
Tablet Option
