Measuring functions
Spectrometer for the specialist with LUX, CCT, CRI, PPFD, TLCI, IES TM-30, flicker index / % / frequency, reference mode
Illuminance, measuring range: 10 lx ... 100,000 lx, accuracy: +/- 3%
Irradiance, Luminous Efficacy Ratio
Color temperature
Color temperature difference to Planck's curve
Color rendering index CIE13.3 and IES TM-30-15
Gammut Area Index, peak wavelength
Dominant wavelength according to CIE15, Color purity according to CIE15
Color coordinates according to CIE1931, CIE1960, CIE1976
Television Lighting Consistency Index
PPFD, PPFD_UV, PPFD_Blue, PPFD_Green, PPFD_Red, PPFD_IR
Flicker frequency, Flicker %, Flicker Index
Miscellaneous:
Spectral range: 380 nm ... 780 nm
Supply: Li-ion battery 3.7 V - 890 mAh
Interface: USB 2.0 with USB mini socket
Memory: 4 GB

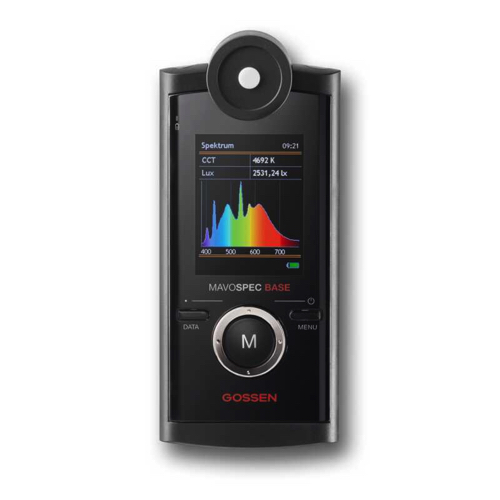

The MAVOSPEC BASE determines all the parameters required for a comprehensive assessment of modern lighting including illuminance, color temperature, color rendering, color coordinates, flicker, spectral power distribution, peak wavelength and dominant wavelength. With the photosynthetic photon flux density PPFD, plant lighting can also be analyzed and suitable spectra can be selected for optimal growth and flowering. The Television Lighting Consistency Index TLCI assesses the lighting with the eye of the camera and provides important values for color correction.
