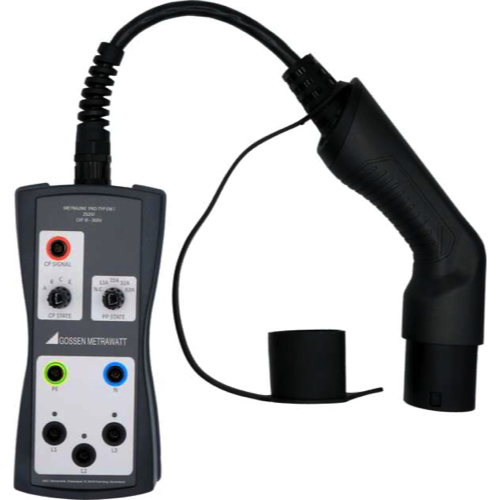

Gossen Metrawatt METRALINE PRO-TYP EM I Single And 3-Phase Test Adapter (400 V, 3-phase; 2.9 kVA; 50 Hz)

Application: Testing of AC electric vehicle charging stations (EVSE)

Standards: IEC 61851-1

Vehicle state simulation: State A, State B, State C, State E

Cable simulation (PP): 13 A (1.5 kΩ), 20 A (680 Ω), 32 A (220 Ω), 63 A (100 Ω)

Input voltage: Up to 400 V, 3-phase

Frequency: 50 Hz

Maximum load: 2.9 kVA

Measurement category: CAT III 300 V

Protection class: Class II

Test voltage: 3.5 kV AC

Protection degree: IP20

Operating temperature: −10°C to +45°C

Storage temperature: −25°C to +60°C

Relative humidity: Max. 80%, non-condensing

Dimensions: 105 × 210 × 53 mm

Total length with cable: approx. 750 mm

Weight: approx. 795 g

Datasheet

Delivery

1 x METRALINE PRO-TYP EM II test adapter

1 x set operating instructions
