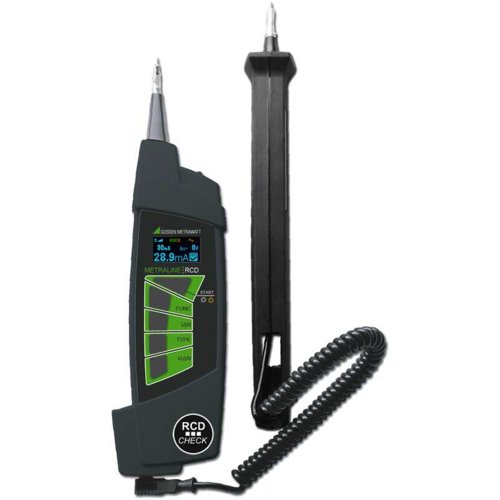

Gossen Metrawatt METRALINE RCDCHECK RCD Test Instrument (10 mA, 30 mA, 100 mA, 300 mA, 500 mA)

Residual current device (RCD) testing range: Nominal currents 10 mA, 30 mA, 100 mA, 300 mA, 500 mA

Tripping time measurement range: 0 ms to 500 ms

Tripping current measurement range: 0.4 × IΔN to 1.5 × IΔN (depending on RCD type)

Touch voltage measurement range: 0.0 V to 99.9 V

Loop impedance measurement range: 0 Ω to 2000 Ω (without tripping the RCD)

Voltage measurement range: 190 V to 255 V AC (TRMS)

Frequency measurement range: 45 Hz to 65 Hz

Display: Backlit color OLED display with digital measurement indication

RCD test types supported: Type AC, Type A, Type F, selective Type S

RCD test modes: ½ IΔN, 1 IΔN, 2 IΔN, 5 IΔN, ramp test for tripping current determination

Special RCD testing: Pulsating DC (half-wave) testing and selective RCD testing

Phase detection: Automatic phase detection function

Measurement illumination: Integrated LED for measurement point illumination

Safety category: CAT III 300 V (with safety cap), CAT II 300 V (without safety cap)

Protection rating: IP40

Operating temperature range: 0°C to +40°C

Power supply: 4 × AAA batteries (1.5 V alkaline or 1.2 V NiMH rechargeable)

Dimensions (W × H × D): Approx. 255 × 70 × 40 mm

Weight: Approx. 0.36 kg (including batteries)

Datasheet

Delivery

1 Test instrument with mobile test probe and

4 batteries (AAA)

1 Pouch

1 Condensed operating instructions

1 CD-ROM with operating instructions in available languages

1 Factory calibration certificate
