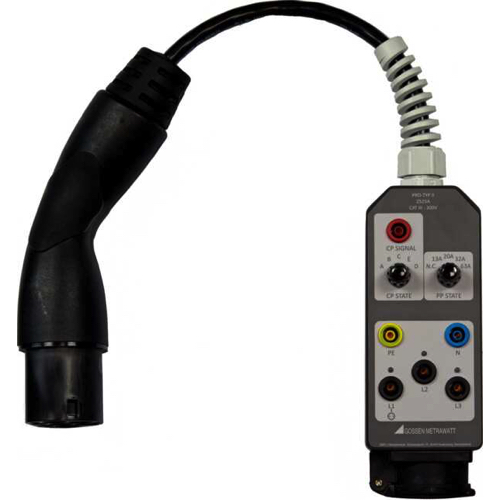

Application: Single and 3-phase test adapter for testing charging stations (Type 2) per IEC 61851-1
Vehicle Simulation (CP): States A, B, C, D, and E (selectable via rotary switch)
Cable Simulation (PP): 13 A, 20 A, 32 A, and 63 A, plus "no cable" (selectable via rotary switch)
Fault Simulation: Simulation of a short-circuit between CP and PE
Voltage Indication: Phase voltages indicated via 3 LEDs (L1, L2, L3)
Electrical Safety: CAT II 300 V
Connections:
Charging Station Side: Type 2 plug (for outlets or permanently attached cables)[1][2][3]
Test Instrument Side: Schuko socket (earthing contact) and 4 mm safety sockets
Special Feature: Extended CP test pin for testing charging points with fixed, non-removable cables
Weight: approx. 940 g (0.94 kg)
Compatible Instruments: PROFITEST MASTER series (MTECH+, MXTRA, IQ) and PROFITEST MF series
