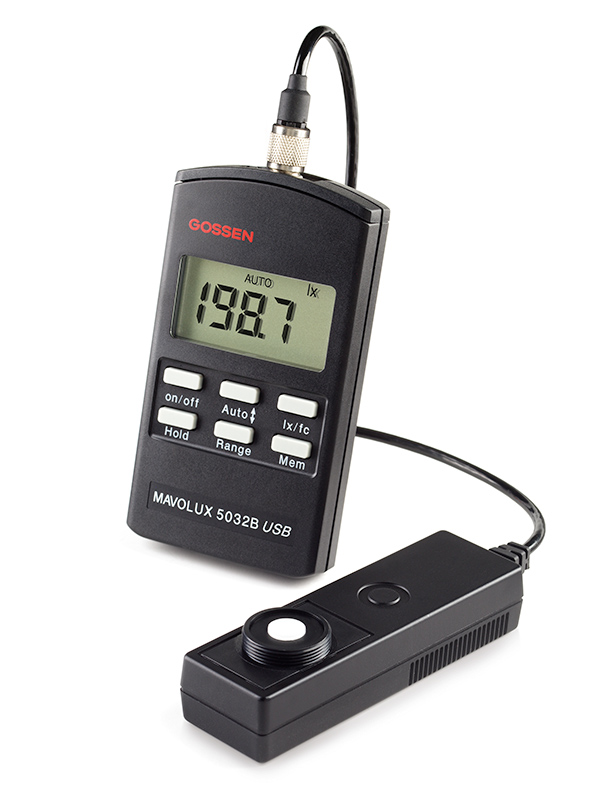

Gossen MAVOLUX 5032 B USB Precision Luxmeter (0.1~199 900 / 0.01~19990 fc)

Type: Precision Luxmeter

Classification: Class C DIN 5032-7 / EN 13032-1 appendix B

MEASURING FUNCTIONS

Illuminance [Lux]: 0.1 lx…199 900 lx/0.01 fc …19 990 fc

Luminance: 1 cd/m²…1 999 000 cd/m²/0.1 fL…199 900 fL with optional luminance attachment, not classified

Measuring ranges: 5

Measuring range selection: Automatic / manual

Measuring rate:  2 per second

Measuring method: Distance measurement, Contact measurement with optional luminance attachment

Measuring sensor: Silicon photodiode with V (λ) filter

Probe with tripod thread:  •

Measurement cable:  1.5 m, plug-in

Measured value memory: 100 measured values

Error limit – V(λ) adapted (f1‘), typical:  < 3 %

Error limit – overall error, typical:  ≤ 8 %

Accuracy:  ± 3 % of reading ± 1 digit

OPERATION

Display: 3 1/2 digit LCD

Back-Light: •

Operating elements: 6 keys

Interface: USB 1.1

Software: GLUX 2

POWER SUPPLY

Battery: 1.5 V mignon, type AA

Automatic battery control: •

Automatic shutdown: 4 min / continuous operation

Battery service life: Approx. 45 hours with alkaline manganese battery

Power supply: USB

MISCELLANEOUS

Operating temperature: 0 °C to 50 °C

Dimensions: 65 mm x 120 mm x 19 mm (meter); 31 mm x 105 mm x 30 mm (probe)

Weight: 200 g without battery

Delivery contents: Aluminum case, GLUX 2 software, USB cable, battery, operating instructions, calibration protocol
