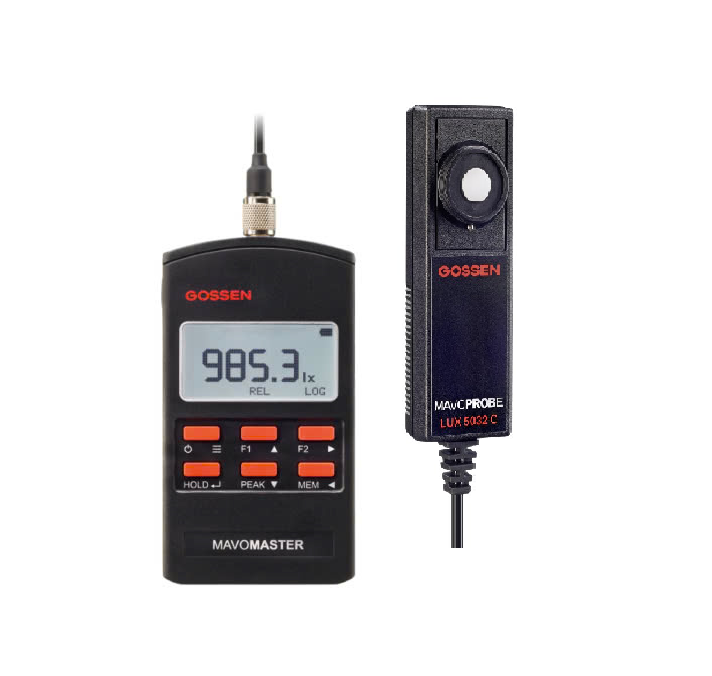

Gossen MAVOLUX 5032 C – Kit Systematic Light Metering (Mavomaster, Mavoprobe Lux 5032 C)

MAVOMASTER

Type: Illuminance measuring probe

Article number: M525G

MEASURING FUNCTIONS

Sampling rate: 2/s

Probe connector cable: Probe connection, Binder series 711 plug, 5-pin

Compliance with the Standards: DIN 5032-7 / DIN EN 13032-1 appendix B / ISO CIE 19476

OPERATION

Display: FSTN graphic display, 128×64, monochrome, 50 mm x 25 mm

Background illumination: Selectable mode and adjustable brightness

Controls: 6 keys, fluorescent lettering

Measured value memory: 8 GB

Interface: USB 2.0. micro-B socket

Software: EXCEL TEMPLATES

POWER SUPPLY

Batteries: 1.5V mignon, type AA

Automatic battery monitoring: ✓

Automatic shutdown: Off, 10 s, 30 s, 1 min, 2 min, 5 min

Battery service life: Up to 16 h continous operation with alkaline manganese battery

Power supply via USB: ✓

MISCELLANEOUS

Operating temperature: -10 °C to +50 °C

Dimensions: 65 mm x 120 mm x 19 mm

Weight: 100 g including battery

Scope of delivery: Operating instructions, battery, USB cable

MAVOPROBE LUX 5032 C

Type: Illuminance measuring probe

Classification: Klasse C – DIN 5032-7

Article number: M528G

MEASURING FUNCTIONS:

Illuminance: 0.1 lx … 199 900 lx / 0.01 fc … 19 990 fc

Luminance: 0.1 cd/m² … 1 999 000 cd/m² / 0.01 fL … 199 900 fL with optional luminance attachment, not classified

Irradiance – UV-A 365 nm: -

Sampling rate: 2/s

Measuring sensor: Silicon photodiode with V(λ) filter

Probe with ¼“ tripod thread: ✓

Probe connector cable: 1.5 m, plug-in, Binder series 711 plug, 5-pin

Compliance with the Standards: DIN 5032-7 class C / DIN EN 13032-1 appendix B / ISO CIE 19476

Characteristic value – V(λ) matching (f1‘), typical: < 7,5%

Characteristic value – cos-like rating f2, typical f2: < 2%

Temperature dependence: < 0.1%, temperature compensated

Accuracy: ±  3 % rdg ± 1 digit

OPERATION:

Interface: USB 2.0 with adapter cable

Software: EXCEL TEMPLATES

POWER SUPPLY:

Power supply via USB: ✓

MISCELLANEOUS:

Operating temperature: -10 °C to +50 °C

Dimensions: 33 mm x 115 mm x 27 mm

Weight: 110 g

Scope of delivery: Operating instructions, final test certificate
