Input: AC110-240V

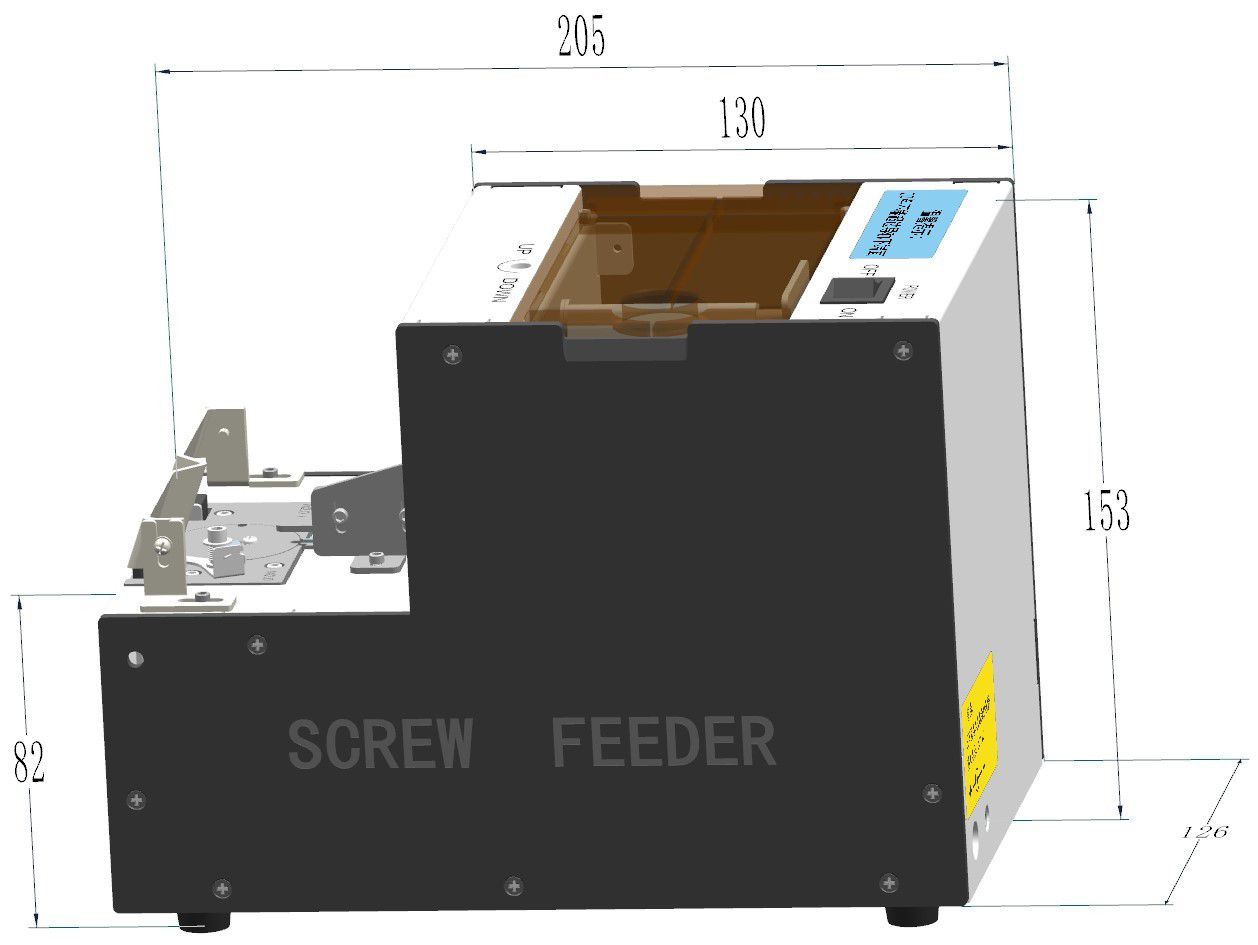

Overall dimension: 205*126*153
Application scenario: Manual operation
Exportation: DC15V
Net weight: About 2.8kg
Screw diameter (mm): 3.5
Nut diameter (mm): 3.7-10
Nut thickness (mm): ≥0.3mm
Screw length (mm): 4.1-15
Product Details

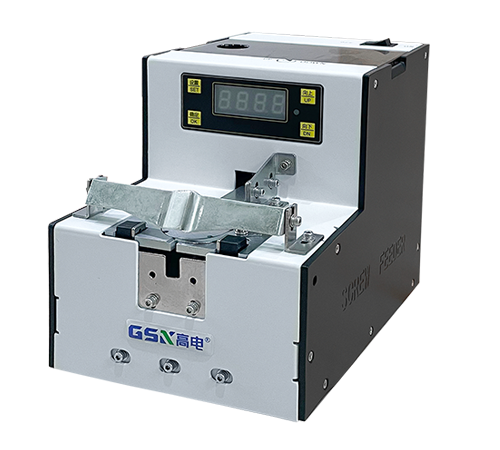

1. This product is a medium-sized screw feeder for manual operation, which can adjust the Angle of the limit frame from multiple angles to meet different locking requirements, and is suitable for various manual locking operation scenarios.
2. Wide range of application
Widely applicable to a variety of types and lengths of screws, such as M1.2-M5.0 standard screws, special screws, short screws, self-tapping screws, screws with gaskets, etc., especially suitable for smart phones, smart watches and other precision screw lock environment.
3. It runs smoothly
Screws run in the drum, any screws that do not enter the track in the correct direction will fall into the drum and enter the next cycle, and it is not easy to get stuck in normal use.
4. Work efficiency can be adjusted
Feed and vibration independent control, can freely set the ideal delay time, gear feeding turntable and four degree take-up disk can be independently controlled, according to different screws and set the speed of the turntable, adjust the screw feeding and dividing speed, suitable for a variety of operations.
5. Can greatly improve production efficiency
The screw is automatically divided (90°) to the feeding port position, and the material can be taken directly without manual correction, greatly improving the production efficiency.
6. Screw counting function
The screw machine is equipped with a digital display panel, through which the setting parameters can be personalized adjusted, and with automatic screw counting function.
7. Fault alarm function
When the material is stuck, the dial will automatically reverse, normal recovery after positive rotation, abnormal circumstances occur abnormal, the screw will automatically start the alarm device (lack of material).
