Input voltage: DC 30V
Rated power: 45W
Torsion range:
kgf.cm: 2-16
N.m: 0.196-1.57
Lbf.in: 1.734-13.87
Torque accuracy (%): ±5
Torque adjustment: stepless
No-load speed(rpm): 1000
Applicable screw diameter(mm):
Mechanical tooth(mm): 2.3-3.5
Self-tapping teeth(mm): 2.0-3.0
Suitable for screwdriver head: ø5/ HEX 5/6.35 (1/4')
Product Details

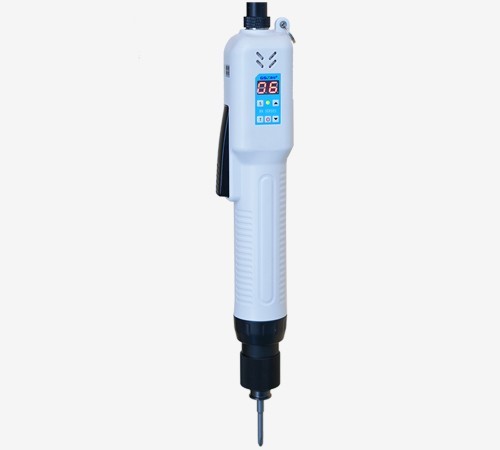

1. Integrated intelligent counting type electric driver beautiful appearance, scientific design, simple structure, simple operation, accurate torque.
2. It can ensure the correct assembly and tightening of screws to ensure the consistency and stability of the assembly process and process. Compared with the ordinary electric driver, it is more convenient to achieve the control of the production quality, and has the error prevention function to reduce the screw leakage lock, float height and slip teeth.
3. Parameter grouping: 5 separate lock payment groups (different screw groups) can be set, there is no need to reset parameters when replacing lock payment products, and the corresponding group is retrieved in the system to improve production efficiency.
4. Repair lock time: the second reinforcement lock payment, the second start within the specified time does not count.
5. Rollback function: rollback screw count.
6. Number of stage revolutions: the screw locking speed can be changed in three stages, and the best speed can reduce the power consumption when locking, improve the quality of the thread connection and improve the stability during the assembly process.
7. Turn number setting: Use turn number control to achieve accurate control of screw lock position.
