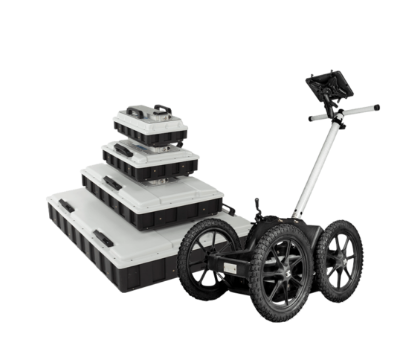

Guidelinegeo GX750 MALÅ Ground Explorer (Antenna center freq: 750 MHz)

Controller

Processor: 1.6 GHz Intel Atom

Display: 1024 x 768 mm

OS: Linux

Memory: 8 GB compact Flash memory

Data output: 32 bit

Power supply: Internal 12 V/20.8 Ah Li-Ion

Charger

Power consumption: 1.3 – 2.0 A

Operating time: 8 – 10 h

Dimensions: 326 x 216 x 92 mm including handles, 326 x 216 x 52 mm excluding handles

Weight: 3.23 kg

Operating temp: - 20° to + 50° C or 0° to 120° F

Environmental: IP 65

Antennas

Technology: MALÅ Semi-Real-Time

Antenna center freq: 750 MHz

SNR: 97 dB

Scans/second: > 1290, time window 75 ns

Survey speed: 460 [km/h] point distance 10 cm

Time window: 75 ns

Operating time: 5 h

Power supply: Interchangeable 12 V

Power consumption: 1.3 A

Dimensions: 375 x 235 x 170 mm

Weight: 3.6 kg

Operating temp: - 20° to + 50° C or 0° to 120° F
